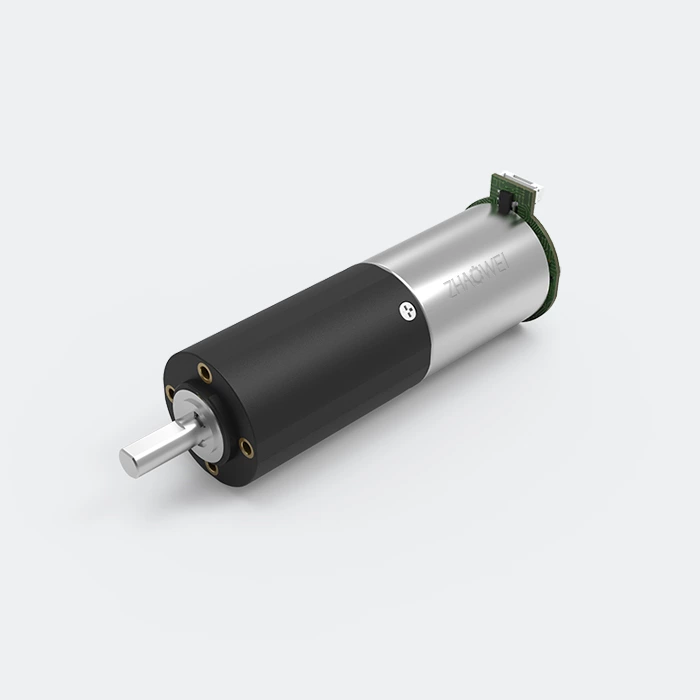

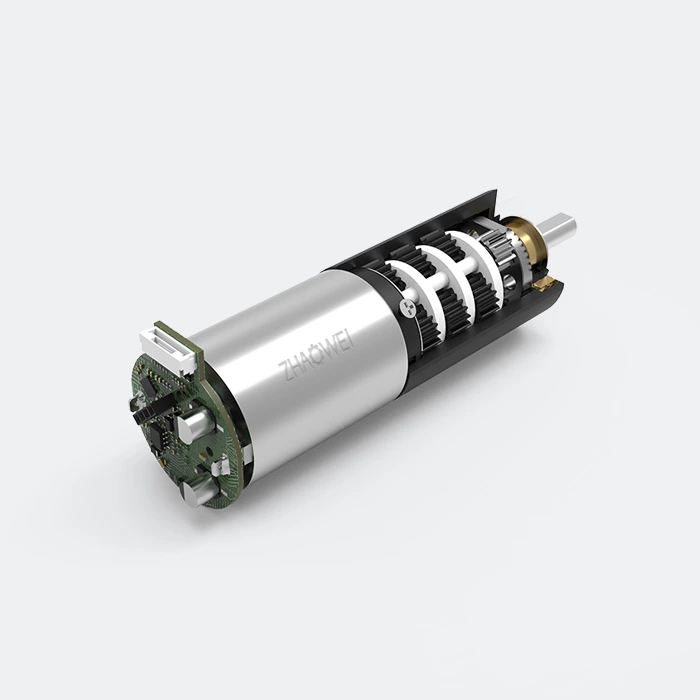

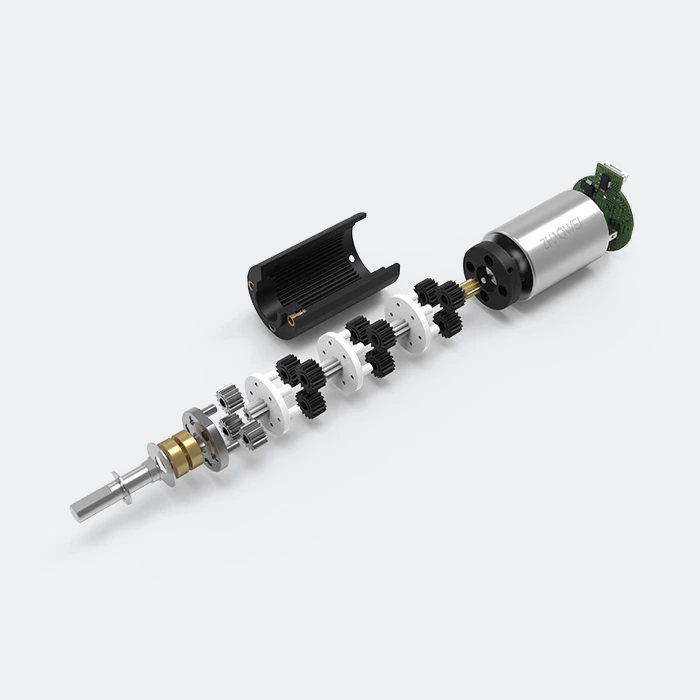

Brushed DC Gear Motor With Encoder (28mm)
Model: PD028028
Gearbox Specifications: Bearing Porous bearing Rolling bearing Axial Endplay ≤0.1mm ≤0.1mm Radial Loading on Output Shaft ≤50N ≤100N Operating Temperature -20℃ ~ +85℃ Parameters
- Diameter
- 28mm
- Voltage Range
- 24V
- Reduction Ratio
- 16-1296
- Max. Transmittable Power
- 3.5W
- Max. Continuous Torque
- 15,000gf.cm
- Max.Torque Range(gf.cm>
- 15,000-60,000gf.cm
- Rated Speed Range
- 5-413rpm
Gearbox Specifications:
| Bearing | Porous bearing | Rolling bearing |
|---|---|---|
| Axial Endplay | ≤0.1mm | ≤0.1mm |
| Radial Loading on Output Shaft | ≤50N | ≤100N |
| Operating Temperature | -20℃ ~ +85℃ | |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 4/6 | 16/24/36 | 64/96/144/216 | 256/384/576/864/1296 |
| Max Rated Torque (gf.cm max) | 15000 | 15000 | 15000 | 15000 |
| Max Instant Torque (gf.cm max) | 60000 | 60000 | 60000 | 60000 |
| Gearbox Efficiency (%) | 80 | 64 | 51 | 41 |
| Length (mm) | 20.6 | 29.1 | 37.6 | 46.1 |
Drawing:
Motor Specifications:
| Motors (Optional) | Brushed DC motor |
|---|---|
| Voltage (Optional) | 3-24V |
| Input Speed | ≤15000rpm |
| Current | 400mA max |
Performance Data:
| Model | Rated Speed (rpm) |
Max Speed (rpm) |
Max Rated Torque (gf.cm) | Max Instant Torque (gf.cm) |
Gear Ratio | Length (L1) (mm) |
Overall Length (L) (mm) |
|---|---|---|---|---|---|---|---|
| PD028028-16 | 413 | 472 | 15000 | 60000 | 16 | 29.1 | 66.6 |
| PD028028-24 | 276 | 321 | 15000 | 60000 | 24 | ||
| PD028028-36 | 181 | 211 | 15000 | 60000 | 36 | ||
| PD028028-64 | 104 | 119 | 15000 | 60000 | 64 | 37.6 | 75.1 |
| PD028028-96 | 69 | 79 | 15000 | 60000 | 96 | ||
| PD028028-144 | 46 | 54 | 15000 | 60000 | 144 | ||
| PD028028-216 | 31 | 35 | 15000 | 60000 | 216 | ||
| PD028028-256 | 26 | 30 | 15000 | 60000 | 256 | 46.1 | 83.6 |
| PD028028-384 | 17 | 19 | 15000 | 60000 | 384 | ||
| PD028028-576 | 12 | 13 | 15000 | 60000 | 576 | ||
| PD028028-864 | 8 | 9 | 15000 | 60000 | 864 | ||
| PD028028-1296 | 5 | 6 | 15000 | 60000 | 1296 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
