Stepper Motor

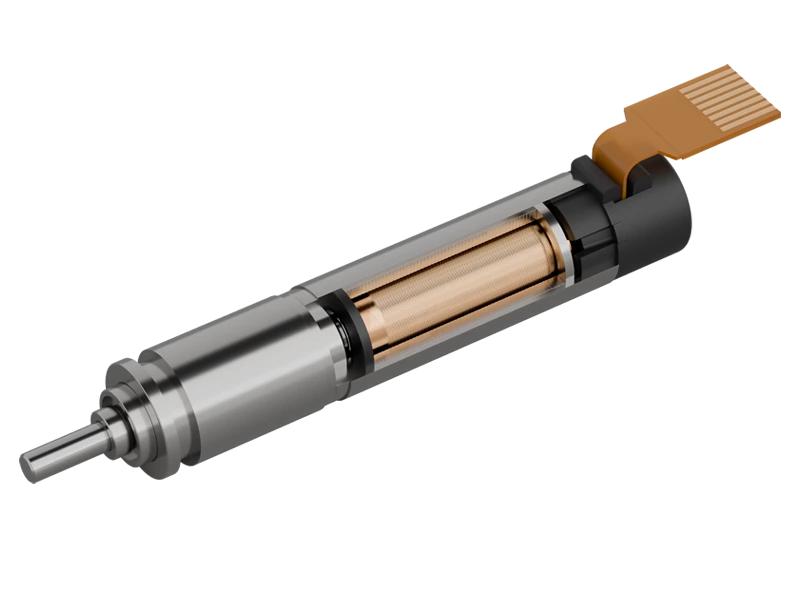

The geared stepper motor is a combination of stepper motor and gearbox. As we know, the brushed DC motor will keep rotating if connected to a DC power supply. Things are different for geared stepper motor. It will convert the input pulse into a precisely defined increment in the shaft position. The shaft is moved by each pulse with a fixed angle. That means every pulse inputs, the rotator will move a step or rotate at a fixed angle. The rotating speed is proportional to the pulse frequency. Therefore, you can control the rotating speed by changing the frequency of the input pulse, realizing precise positioning.

There are various standards when it comes to categorizing the stepper gear motors. They can be divided into three types according to magnet force source: permanent magnet stepper, variable reluctance stepper, and hybrid synchronous stepper. If classified by the gearbox of stepper gear motors, stepper planetary gearbox is a common type.

The ZHAOWEI stepper gearmotors generally adopt high torque micro stepper motor with planetary gearbox, whose OD varies from 3.4mm to 38mm. Voltage: 1.5-24V, power: 0.01-40W, output speed: 5-2000rpm and output torque: 1.0 gf.cm -50kgf.cm are available.

Adding a gearbox to a stepper motor can improve motor performance by reducing the inertia ratio of the load to the motor, increasing the load torque, and reducing motor vibration. The stepper gearbox system shows significantly less vibration than the stepper motor without gearbox, especially at low speed in the resonance frequency range. With the lightweight and cost-effective structure, the small stepper motor with gearbox is suitable for various applications, like smart home devices, automobile components, consumer electronics, etc.

Screw Lifting Stepper Motor
Voltage
3.0-7.0V
Rated Torque
400gf.cm
Noise
50db
Direction of Rotation
cw&ccw
Stroke Length
6-15mm
Stroke Time
0.2-1.5s
Frequency
24000PPS

Screw Lifting Stepper Motor

3.4mm Stepper Motor
Voltage
1.5-5V
Load Current
50mA
Rated Speed
2.4–300rpm
Rated Torque
50gf.cm
Reduction Ratio
5-625
Overall Length
10.75-15.25mm

3.4mm Stepper Motor

4mm Stepper  Motor
Voltage
1.5-5V
Load Current
50mA
Rated Speed
2.4-300.0rpm
Rated Torque
70gf.cm
Reduction Ratio
5-625
Overall Length
18.6-23.1mm

4mm Stepper Motor

6mm Stepper Motor
Voltage
3-12V
Load Current
100mA
Rated Speed
4-1563rpm
Rated Torque
300gf.cm
Reduction Ratio
4.8-1707.9
Overall Length
23.7-30.9mm

6mm Stepper Motor

8mm Stepper Motor
Voltage
3-12V
Load Current
150mA
Rated Speed
15-3361rpm
Rated Torque
250-750gf.cm
Reduction Ratio
3.6-809.1
Overall Length
26.1-34.2mm

8mm Stepper Motor

10mm Stepper Motor
Voltage
3-24V
Load Current
150mA
Rated Speed
17-3917rpm
Rated Torque
1000gf.cm
Reduction Ratio
3-809
Overall Length
24.7-34.0mm

10mm Stepper Motor

12mm Stepper Motor
Voltage
3-24V
Load Current
250mA
Rated Speed
6-1875rpm
Rated Torque
300-2000gf.cm
Reduction Ratio
4-1296
Overall Length
32.4-43.8mm

12mm Stepper Motor

16mm Stepper Motor
Voltage
3-24V
Load Current
300mA
Rated Speed
6-1875rpm
Reduction Ratio
4-1296
Overall Length
38.4-48.3mm

16mm Stepper Motor

20mm Stepper Motor
Voltage
3-24V
Load Current
300mA
Rated Speed
6-1875rpm
Rated Torque
10000gf.cm
Reduction Ratio
4-1296
Overall Length
42.7-58.6mm

20mm Stepper Motor

22mm Stepper Motor
Voltage
3-24V
Load Current
300mA
Rated Speed
6-1875rpm
Rated Torque
15000gf.cm
Reduction Ratio
4-1296
Overall Length
57.5-79.4mm

22mm Stepper Motor

24mm Stepper Motor
Voltage
3-24V
Load Current
300mA
Rated Speed
6-1875rpm
Rated Torque
20000gf.cm
Reduction Ratio
4-1296
Overall Length
49.8-69.8mm

24mm Stepper Motor

28mm Stepper Motor
Voltage
3-24V
Load Current
400mA
Rated Speed
5-1658rpm
Rated Torque
40000gf.cm
Reduction Ratio
4-1296
Overall Length
58.8-84.3mm

28mm Stepper Motor

32mm Stepper Motor
Voltage
3-24V
Load Current
300mA
Rated Speed
7-469rpm
Rated Torque
50000gf.cm
Reduction Ratio
16-1078
Overall Length
81.6-101.6mm

32mm Stepper Motor

38mm Stepper Motor
Voltage
3-24V
Load Current
300mA
Rated Speed
4-1525rpm
Rated Torque
80000gf.cm
Reduction Ratio
4-1526
Overall Length
87.7-126.7mm

38mm Stepper Motor

Application
