high precision, high transmission efficiency and long life

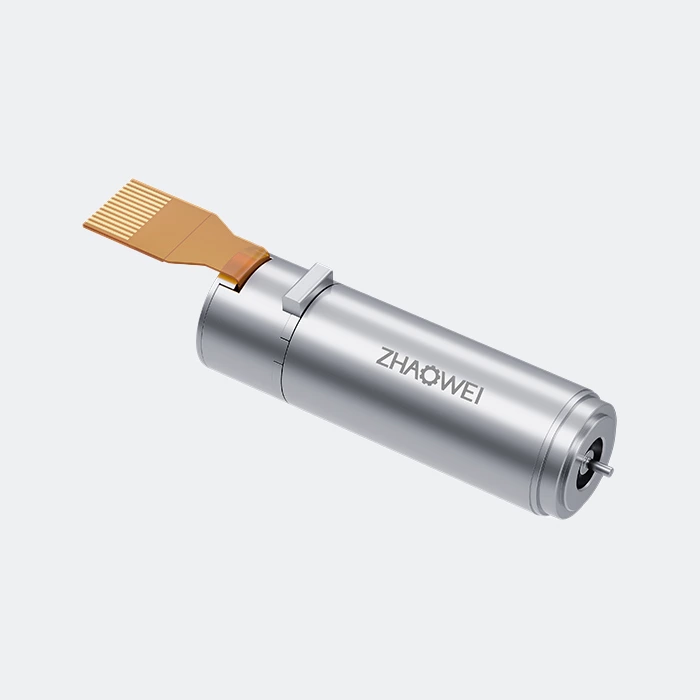

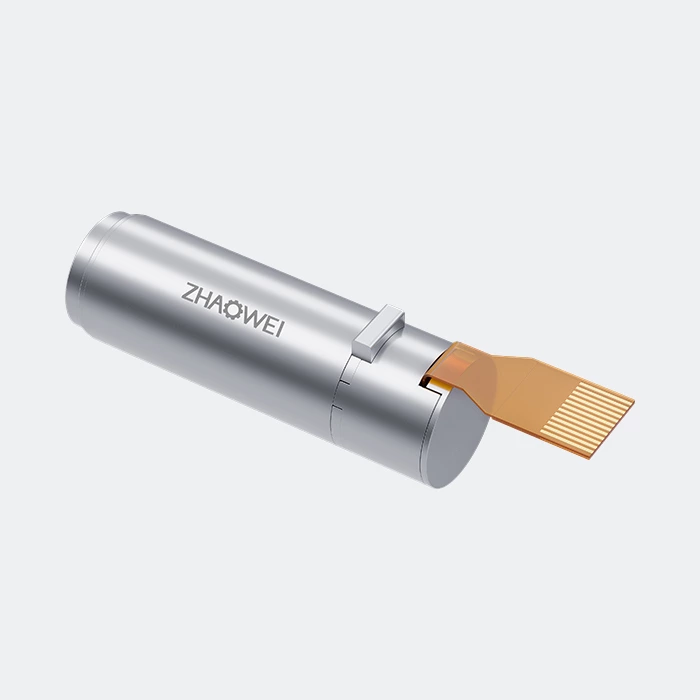

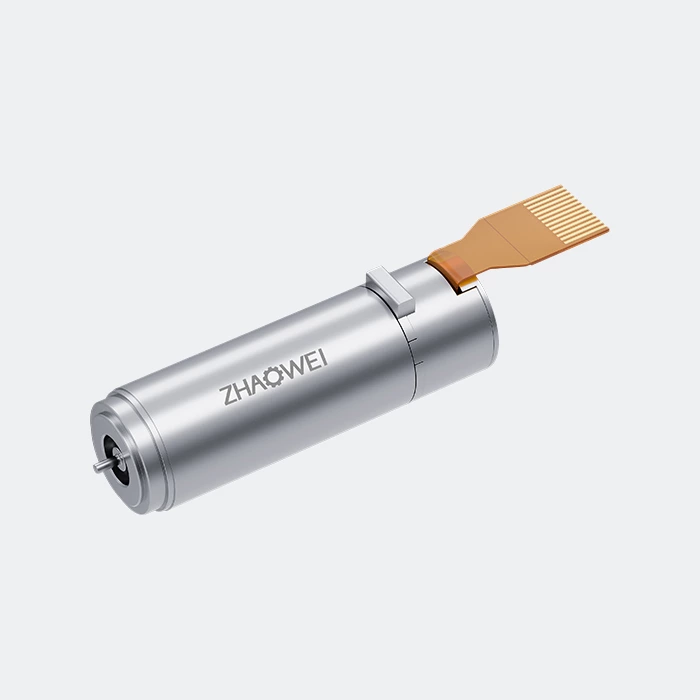

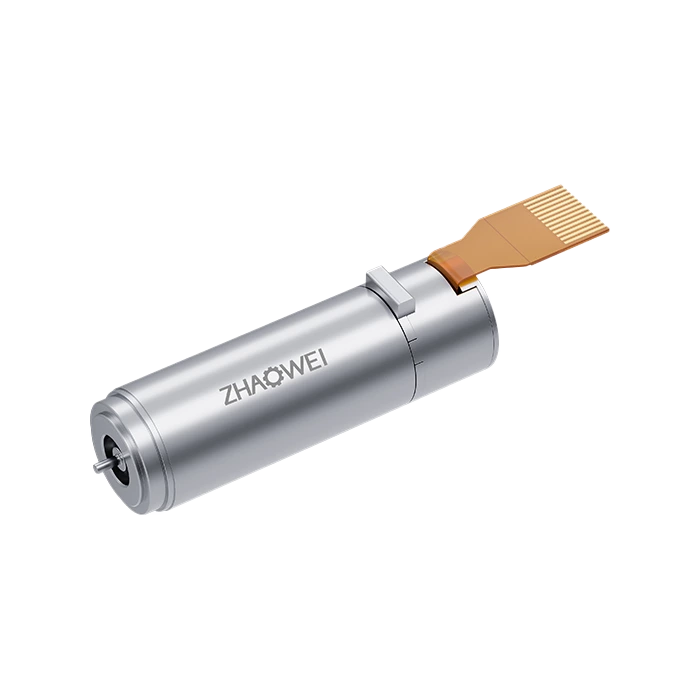

Model：MC1028-01
MC1028-01 with exceptional torque and speed, higher efficiency and package sizes suited to meet your needs, brushless DC motors meet even the most stringent requirements. A brushless DC motor offers excellent speed and position control, long life, and high torque density.
Diameter:
10 mm
Rated Voltage:
12 V
Stall Torque:
8.8 mNm
Stall Current:
2.8 A
Constant torque:
3.3 mNm/A
Speed Constant:
2875 rpm/V
Max. efficiency (%):
61
| Motor Data | |
|---|---|
| Nominal voltage(V) | 12 |
| No load speed(rpm) | 33000 |
| No load current (mA) | 110 |
| Nominal speed (rpm) | 26500 |
| Nominal torque (max. continuous torque) (mNm) | 1.5 |
| Nominal current (max. continuous current) (A) | 0.6 |
| Stall torque(mNm) | 8.8 |
| Stall current(A) | 28 |
| Max. efficiency (%) | 61 |
| Characteristics | |
|---|---|
| Terminal resistance phase to phase (Ω) | 4.25 |
| Terminal inductance phase to phase (mH) | 0.083 |
| Torque constant (mNm/A) | 3.30 |
| Speed constant (rpm/V) | 2857 |
| Speed/torque gradient (rpm/mNm) | 3715 |
| Mechanical time constant (ms) | 3.13 |
| Rotor inertia (gcm2) | 0.09 |
| Thermal data | |
|---|---|
| Thermal resistance housing-ambient | 36.6 K/W |
| Thermal resistance winding-housing | 7.5 K/W |
| Thermal time constant winding | 3.2 s |
| Thermal time constant motor | 210 s |
| Ambient temperature | -20~+100°C |
| Max. winding temperature | +125°C |
| Mechanical data (preloaded ball bearings) | |
|---|---|
| Max. speed | 40 000 rpm |
| Axial play at axial load | < 0.15 N 0 mm |
| > 0.15 N max. 0.06 mm | |
| Radial play | preloaded |
| Max. axial load (dynamic) | 2 N |
| Max. force for press fits (static) | 10 N |
| Max. radial load, 2 mm from flange | 5 N |
You can provide your product requirements to our sales team, and we will select or design the most suitable combination solution for you.
