high precision, high transmission efficiency and long life

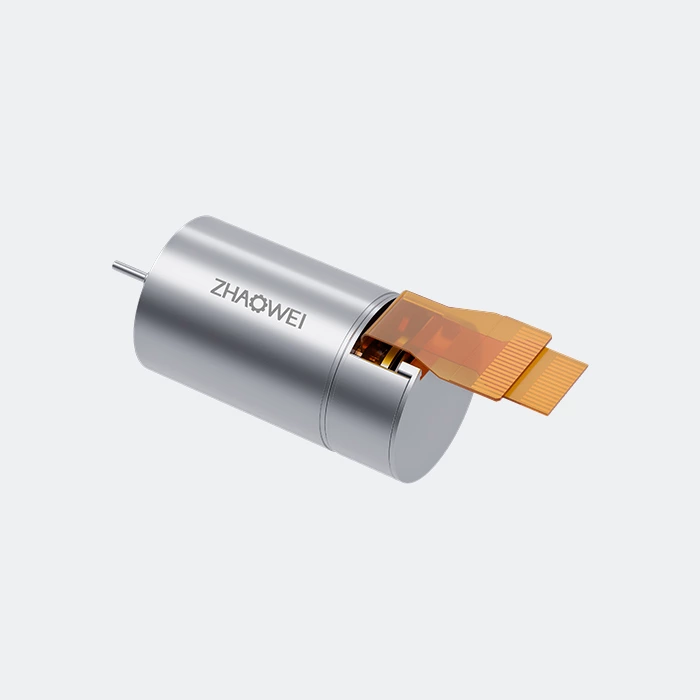

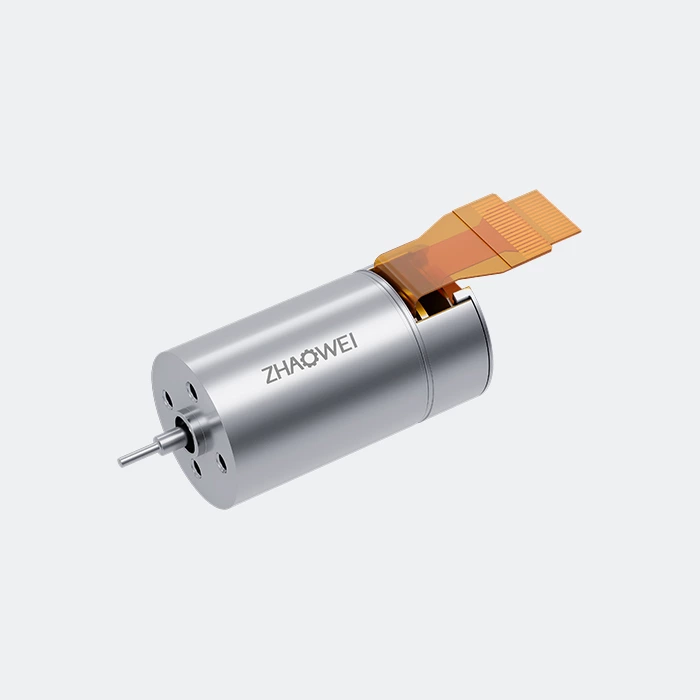

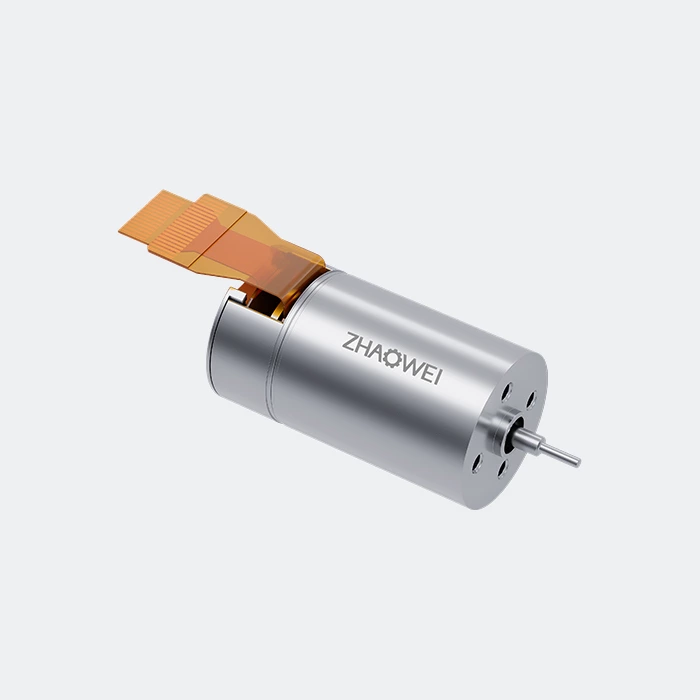

Model：MC1625-08
The MC1625-08 brushless DC slotless motor is ultra cost optimized without compromising on premium performance. The MC1625-08 BLDC mini motor is an ideal choice for downsizing and optimizing handheld applications.
Diameter:
16 mm
Rated Voltage:
12 V
Stall Torque:
21.2 mNm
Stall Current:
3.17 A
Constant torque:
7.2 mNm/A
Speed Constant:
1563 rpm/V
Max. efficiency (%):
63.4
| Motor Data | |
|---|---|
| Nominal voltage(V) | 12 |
| No load speed(rpm) | 17300 |
| No load current (A) | 0.14 |
| Nominal speed (rpm) | 13000 |
| Nominal torque (max. continuous torque) (mNm) | 4.05 |
| Nominal current (max. continuous current) (A) | 0.79 |
| Stall torque(mNm) | 21.2 |
| Stall current(A) | 3.17 |
| Max. efficiency (%) | 63.4 |
| Characteristics | |
|---|---|
| Terminal resistance phase to phase (Ω) | 3.39 |
| Terminal inductance phase to phase (mH) | 0.089 |
| Torque constant (mNm/A) | 7.2 |
| Speed constant (rpm/V) | 1563 |
| Speed/torque gradient (rpm/mNm) | 823 |
| Mechanical time constant (ms) | 1.61 |
| Rotor inertia (gcm2) | 0.209 |
| Thermal data | |
|---|---|
| Thermal resistance housing-ambient | 38.6 K/W |
| Thermal resistance winding-housing | 7.5 K/W |
| Thermal time constant winding | 3.2 s |
| Thermal time constant motor | 210 s |
| Ambient temperature | -20~+100°C |
| Max. winding temperature | +125°C |
| Mechanical data (preloaded ball bearings) | |
|---|---|
| Max. speed | 30 000 rpm |
| Axial play at axial load | < 2.5 N 0 mm |
| 4.7 N > 2.5 N max. 0.05 mm | |
| Radial play | preloaded |
| Max. axial load (dynamic) | 2.5 N |
| Max. force for press fits (static) | 4.7 N |
| Max. radial load, 2 mm from flange | 10 N |
