high precision, high transmission efficiency and long life

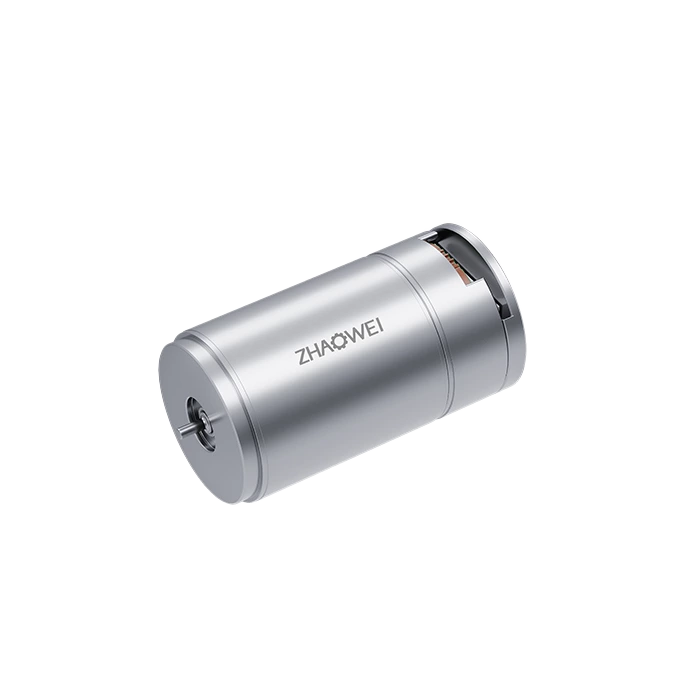

Model：MC1628
Product Parameters Motor Data Nominal voltage(V) 12 24 No load speed(rpm) 17300 58000 No load current (A) 0.14 0.22 Nominal speed (rpm) 13000 46380 Nominal torque (max. continuous
Diameter:
16 mm
Rated Voltage:
12V / 24V
Stall Torque:
21.2 - 39.9 mNm
Stall Current:
3.17 - 10.5 A
Constant torque:
3.9 - 73.2 mNm/A
Speed Constant:
1563 - 2439 rpm/V
Max. efficiency (%):
63.4 - 73.3
| Motor Data | ||
|---|---|---|
| Nominal voltage(V) | 12 | 24 |
| No load speed(rpm) | 17300 | 58000 |
| No load current (A) | 0.14 | 0.22 |
| Nominal speed (rpm) | 13000 | 46380 |
| Nominal torque (max. continuous torque) (mNm) | 4.05 | 8 |
| Nominal current (max. continuous current) (A) | 0.79 | 2.28 |
| Stall torque(mNm) | 21.2 | 39.9 |
| Stall current(A) | 3.17 | 10.5 |
| Max. efficiency (%) | 63.4 | 73.3 |
| Thermal data | |
|---|---|
| Thermal resistance housing-ambient(K/W) | 38.6 |
| Thermal resistance winding-housing(K/W) | 7.5 |
| Thermal time constant winding (s) | 3.2 s |
| Thermal time constant motor(s) | 210 |
| Ambient temperature(°C) | -20~+100 |
| Max. winding temperature(°C) | +125 |
| Characteristics | ||
|---|---|---|
| Terminal resistance phase to phase (Ω) | 3.39 | 2.28 |
| Terminal inductance phase to phase (mH) | 0.089 | 0.013 |
| Torque constant (mNm/A) | 7.2 | 3.9 |
| Speed constant (rpm/V) | 1563 | 2439 |
| Speed/torque gradient (rpm/mNm) | 823 | 1452 |
| Mechanical time constant (ms) | 1.61 | 1.9 |
| Rotor inertia (gcm2) | 0.209 | 0.13 |
| Mechanical data (preloaded ball bearings) | |
|---|---|
| Max. speed(rpm) | 30 000 |
| Axial play at axial load(mm) | < 2.5 N 0 |
| 4.7 N > 2.5 N 0.05(max) | |
| Radial play | preloaded |
| Max. axial load (dynamic)(N) | 2.5 |
| Max. force for press fits (static)(N) | 4.7 |
| Max. radial load, 2 mm from flange(N) | 10 |
