high precision, high transmission efficiency and long life

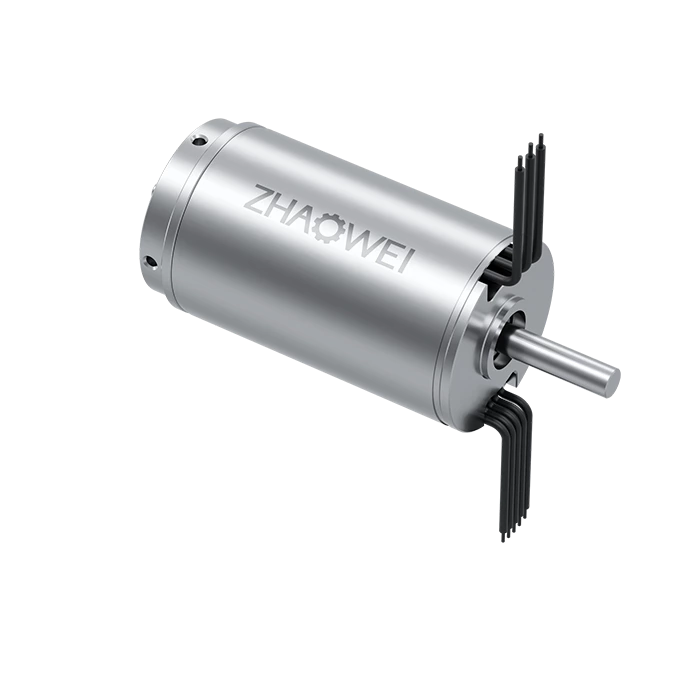

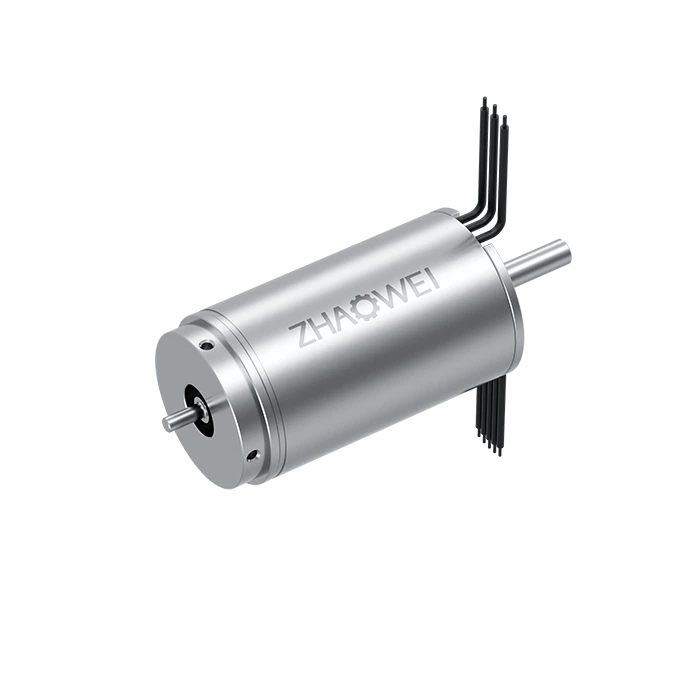

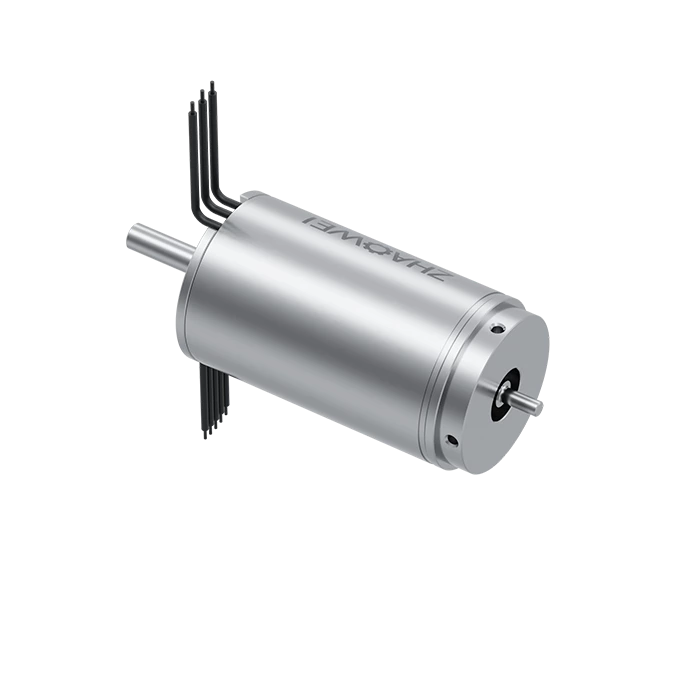

Model：MC2643
Product Parameters Motor Data Nominal voltage(V) 48 No load speed(rpm) 7500 No load current (A) 0.05 Nominal speed (rpm) 7200 Nominal torque (max. continuous torque) (mNm) 4.6 Nominal current (m
Diameter:
26 mm
Rated Voltage:
24 V
Stall Torque:
156 mNm
Stall Current:
2.65 A
Constant torque:
60 mNm/A
Speed Constant:
159 rpm/V
Max. efficiency (%):
75
| Motor Data | |
|---|---|
| Nominal voltage(V) | 48 |
| No load speed(rpm) | 7500 |
| No load current (A) | 0.05 |
| Nominal speed (rpm) | 7200 |
| Nominal torque (max. continuous torque) (mNm) | 4.6 |
| Nominal current (max. continuous current) (A) | 0.13 |
| Stall torque(mNm) | 156 |
| Stall current(A) | 2.64 |
| Max. efficiency (%) | 75 |
| Characteristics | |
|---|---|
| Terminal resistance phase to phase (Ω) | 18.1 |
| Terminal inductance phase to phase (mH) | 0.05 |
| Torque constant (mNm/A) | 60 |
| Speed constant (rpm/V) | 159 |
| Speed/torque gradient (rpm/mNm) | 48.11 |
| Mechanical time constant (ms) | 3.35 |
| Rotor inertia (gcm2) | 11.1 |
| Thermal data | |
|---|---|
| Thermal resistance housing-ambient | - |
| Thermal resistance winding-housing | - |
| Thermal time constant winding | - |
| Thermal time constant motor | - |
| Ambient temperature | -20~+175°C |
| Max. winding temperature | +200°C |
| Mechanical data (preloaded ball bearings) | |
|---|---|
| Max. speed | 25000 rpm |
| Axial play at axial load(mm) | < 3 N 0 |
| 12 N > 3 N 0.1(max) | |
| Radial play | preloaded |
| Max. axial load (dynamic) | 3.2 N |
| Max. force for press fits (static) | 29 N |
| Max. radial load, 2 mm from flange | 15 N |
You can provide your product requirements to our sales team, and we will select or design the most suitable combination solution for you.
