high precision, high transmission efficiency and long life

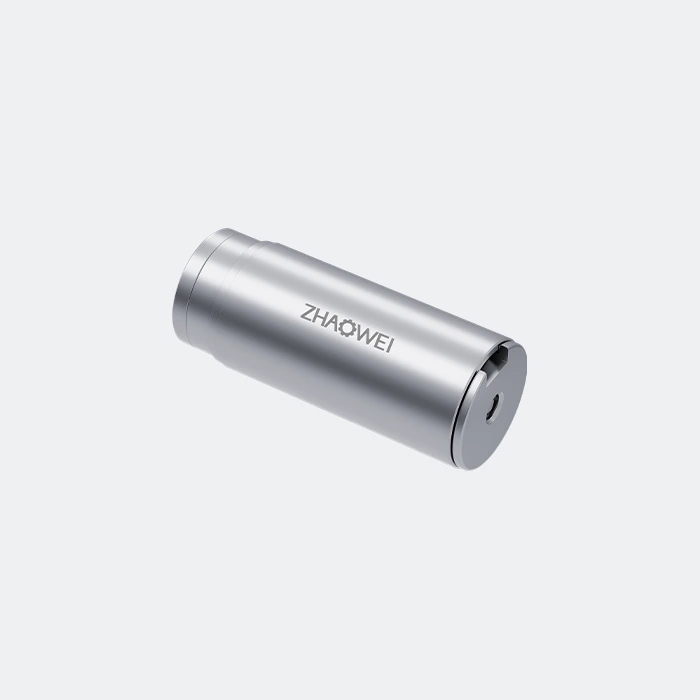

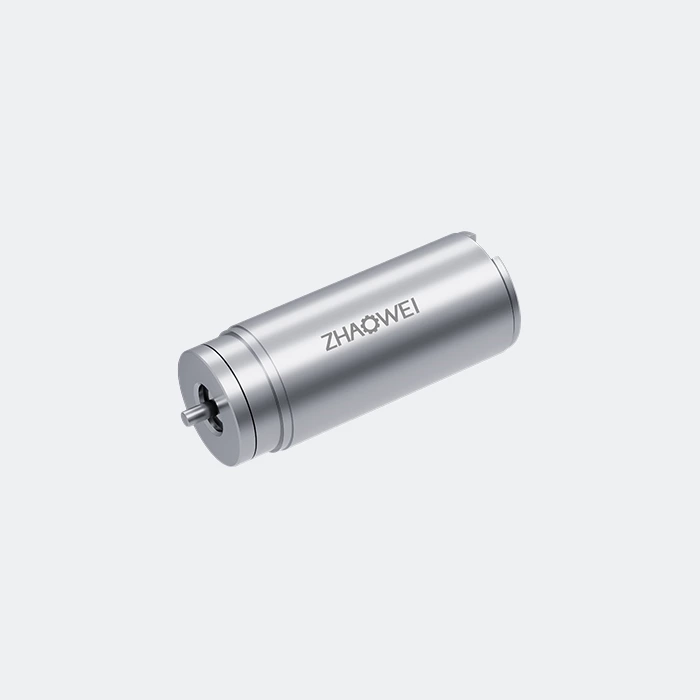

Model：MC0408-01
The MC0408-01 brushless DC slotless motor is an ideal mini-actuation solution that enables you to downsize your application without compromising on performance or reliability. And allows for more power in a compact envelope.
Diameter:
4mm
Rated Voltage:
5V
Stall Torque:
0.07mNm
Stall Current:
0.095A
Constant torque:
0.6mNm/A
Speed Constant:
16667rpm/V
Max. efficiency (%):
20
| Motor Data | |
|---|---|
| Nominal voltage(V) | 5 |
| No load speed(rpm) | 58,000 |
| No load current (A) | 0.045 |
| Nominal speed (rpm) | 41,900 |
| Nominal torque (max. continuous torque) (mNm) | 0.02 |
| Nominal current (max. continuous current) (A) | 0.095 |
| Stall torque(mNm) | 0.07 |
| Stall current(A) | 0.19 |
| Max. efficiency (%) | 20 |
| Characteristics | |
|---|---|
| Terminal resistance phase to phase (Ω) | 26.4 |
| Terminal inductance phase to phase (mH) | 0.07 |
| Torque constant (mNm/A) | 0.6 |
| Speed constant (rpm/V) | 16,667 |
| Speed/torque gradient (rpm/mNm) | 789,337 |
| Mechanical time constant (ms) | 4.2 |
| Rotor inertia (gcm2) | 0.0006 |
| Thermal data | |
|---|---|
| Thermal resistance housing-ambient | - |
| Thermal resistance winding-housing | - |
| Thermal time constant winding | - |
| Thermal time constant motor | - |
| Ambient temperature | -20~+100°C |
| Max. winding temperature | +125°C |
| Mechanical data (preloaded ball bearings) | |
|---|---|
| Max. speed | 100,000 rpm |
| Axial play at axial load | < 0.15 N 0 mm |
| > 0.15 N max. 0.3 mm | |
| Radial play | preloaded |
| Max. axial load (dynamic) | 0.1 N |
| Max. force for press fits (static) | 10 N |
You can provide your product requirements to our sales team, and we will select or design the most suitable combination solution for you.
