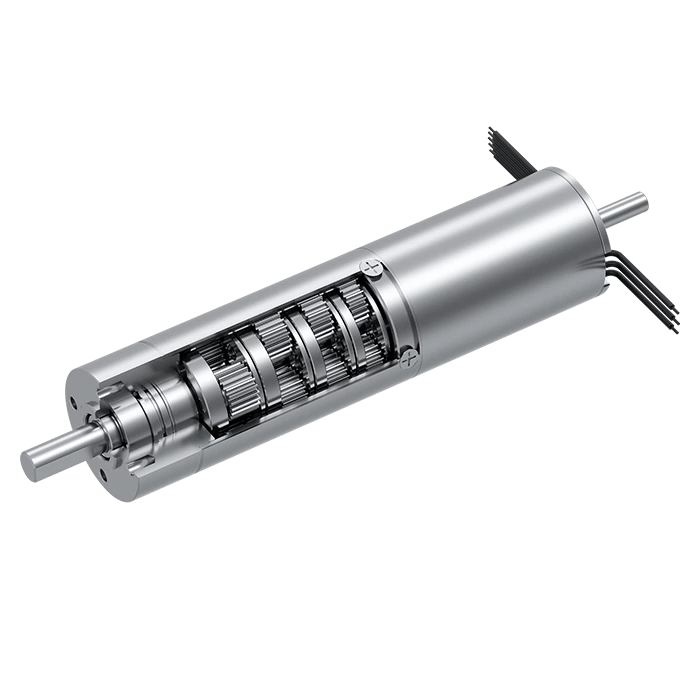

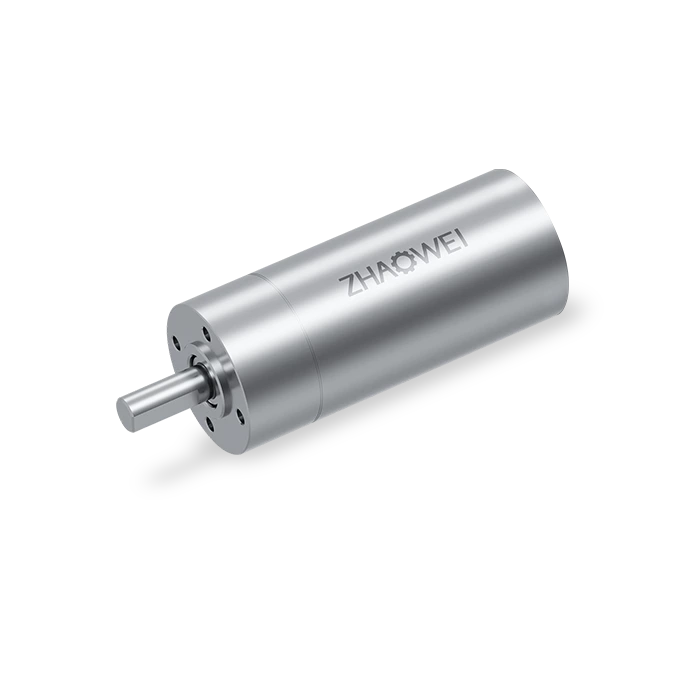

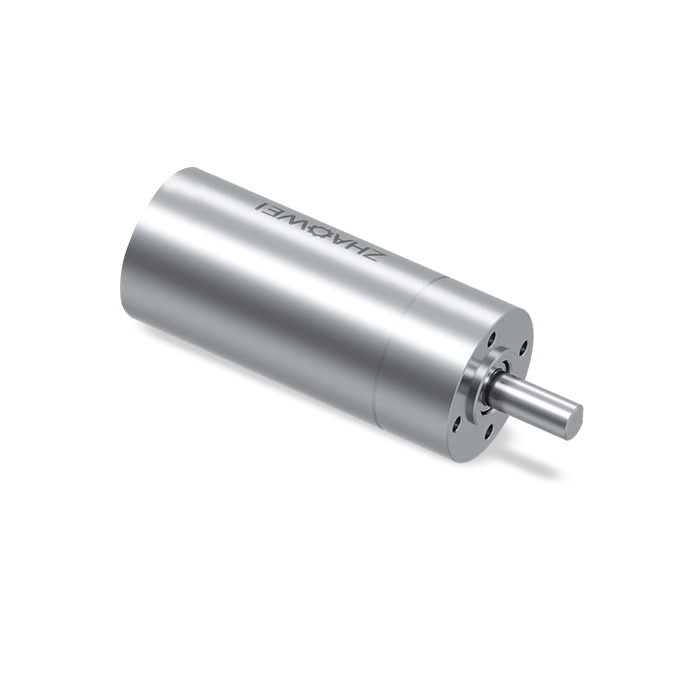

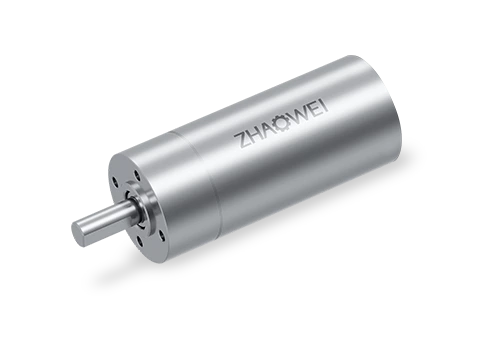

26mm High-temperature planetary Gearbox
Model: ZWSMD026026 （H）
Parameters： Gearbox Stages 4 MAX.
- Diameter
- 26 mm
- Voltage Range
- /
- Reduction Ratio
- 1526
- Weight
- 60.1
- Max. Transmittable Power
- /
- Max. Continuous Torque
- 63(Nm)
- Bearing at Output
- ball bearing
- Rated Speed Range
- /
- Operating Temperature
- -20~+175℃
Parameters：
| Gearbox Technical Date | |
|---|---|
| Number of stages | 4 |
| MAX. continuous tourque (Nm) | 63 |
| MAX. intermittent tourque (Nm) | 8 |
| Reduction Ratio | 1526 |
| Outer diameter (mm) | 26 |
| Gearbox length L1 （mm) | 60.1 |
| Maximum efficiency(%) | 87 |
| Recommended temperature range(℃） | -20~+175 |
| MAX. weight (G) | 170 |
| Maxi. continusous transmittable power W) | 15 |
| Maxi. intermittent transmittable power（W) | 20 |
| Average backlash no load | 0.5 |
| Max .axial load (dynamic)(N) | 110 |
| Max.radial lod (4mm from flange) (N) | 180 |
| Bearing at output | ball bearing |
| Axial play (mm) | 0~0.1 |
*Note: Date above does not include the motor . Specifications can be customizedd per customer requiremerts .

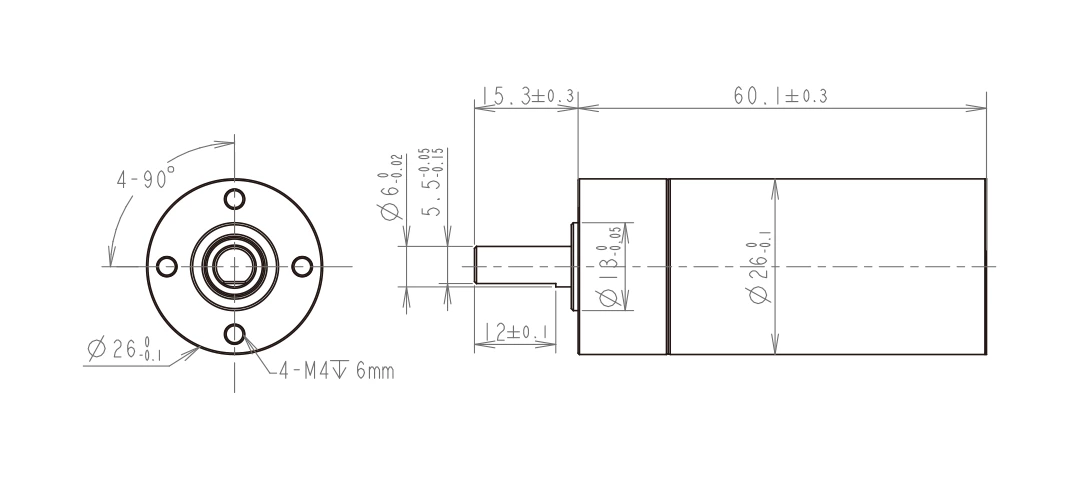

Drawing:
Modular assembly:
| Integrated Product | Part No. | Number of stages |
| 4 | ||
| Length (mm) | ||
| Brushless Motor | MC2643 26mm | 119.1 |
| Encoder | CB-st-22 | Magnetic Encode |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
