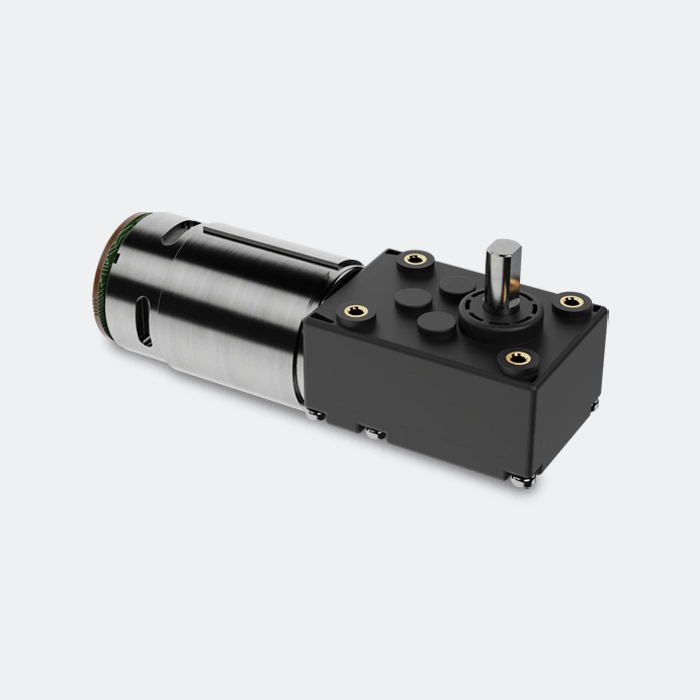

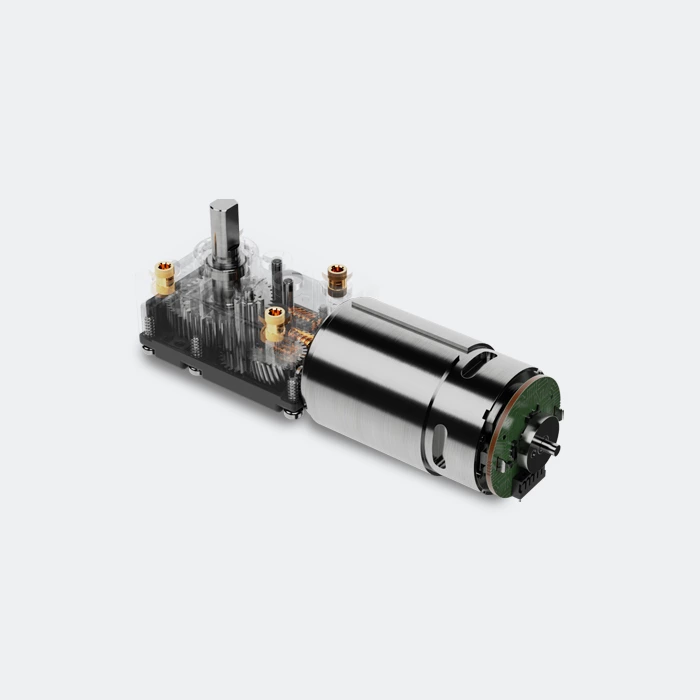

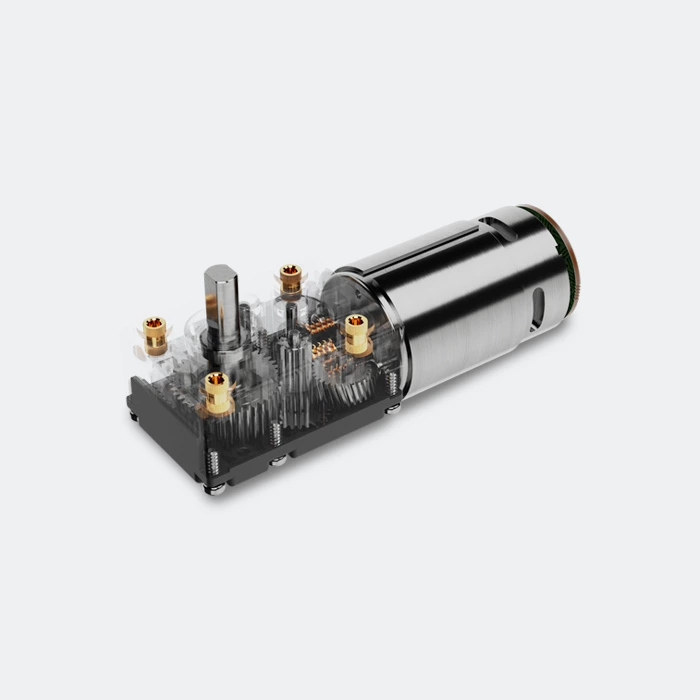

5840 Right Angle Gear Motor 12V
Model: ZWPL5840
- Load Current
- 2.8A (MAX)
- Load Speed
- 90rpm
- No-load Current
- 450mA（MAX）
- No-load Speed
- 106rpm
- Reduction Ratio
- 57.4:1
- Power
- 2.1W~7.5W
Product Parameter:
| Model | Typical Application Parameters | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Gear Ratio | Gear Box Length | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Range | Rated | At No Load | At Rated Load | Motor Overall Length | |||||||||
| Voltage | Voltage | Speed | Current | Speed | Current | Torque | |||||||
| VDC | VDC | rpm | mA(MAX) | rpm | A(MAX) | kgf.cm | N.m | mm | Kgf.cm | Kgf.cm | mm | ||
| ZWPL5840-60-01 | 8~30 | 12 | 106 | 450 | 90 | 2.80 | 7.9 | 0.77 | 57 | 40 | 120 | 57.4 | 129 |
| ZWPL5840-100-01 | 8~30 | 12 | 60 | 450 | 51 | 2.80 | 13.8 | 1.36 | 57 | 40 | 120 | 100.9 | 129 |
| ZWPL5840-130-01 | 8~30 | 12 | 46 | 450 | 39 | 2.80 | 18.1 | 1.77 | 57 | 40 | 120 | 131.8 | 129 |
| ZWPL5840-240-01 | 8~30 | 12 | 25 | 450 | 21 | 2.80 | 27.2 | 2.66 | 57 | 40 | 120 | 244.7 | 129 |
| ZWPL5840-320-01 | 8~30 | 12 | 19 | 450 | 16 | 2.80 | 35.7 | 3.50 | 57 | 40 | 120 | 321.3 | 129 |
| ZWPL5840-420-01 | 8~30 | 12 | 15 | 450 | 12 | 2.30 | 40.0 | 3.92 | 57 | 40 | 120 | 419.7 | 129 |
| ZWPL5840-600-01 | 8~30 | 12 | 10 | 450 | 9 | 2.30 | 40.0 | 3.92 | 57 | 40 | 120 | 595.9 | 129 |
| ZWPL5840-780-01 | 8~30 | 12 | 8 | 450 | 7 | 2.30 | 40.0 | 3.92 | 57 | 40 | 120 | 778.5 | 129 |
| ZWPL5840-1030-01 | 8~30 | 12 | 6 | 450 | 5 | 2.30 | 40.0 | 3.92 | 57 | 40 | 120 | 1030.8 | 129 |

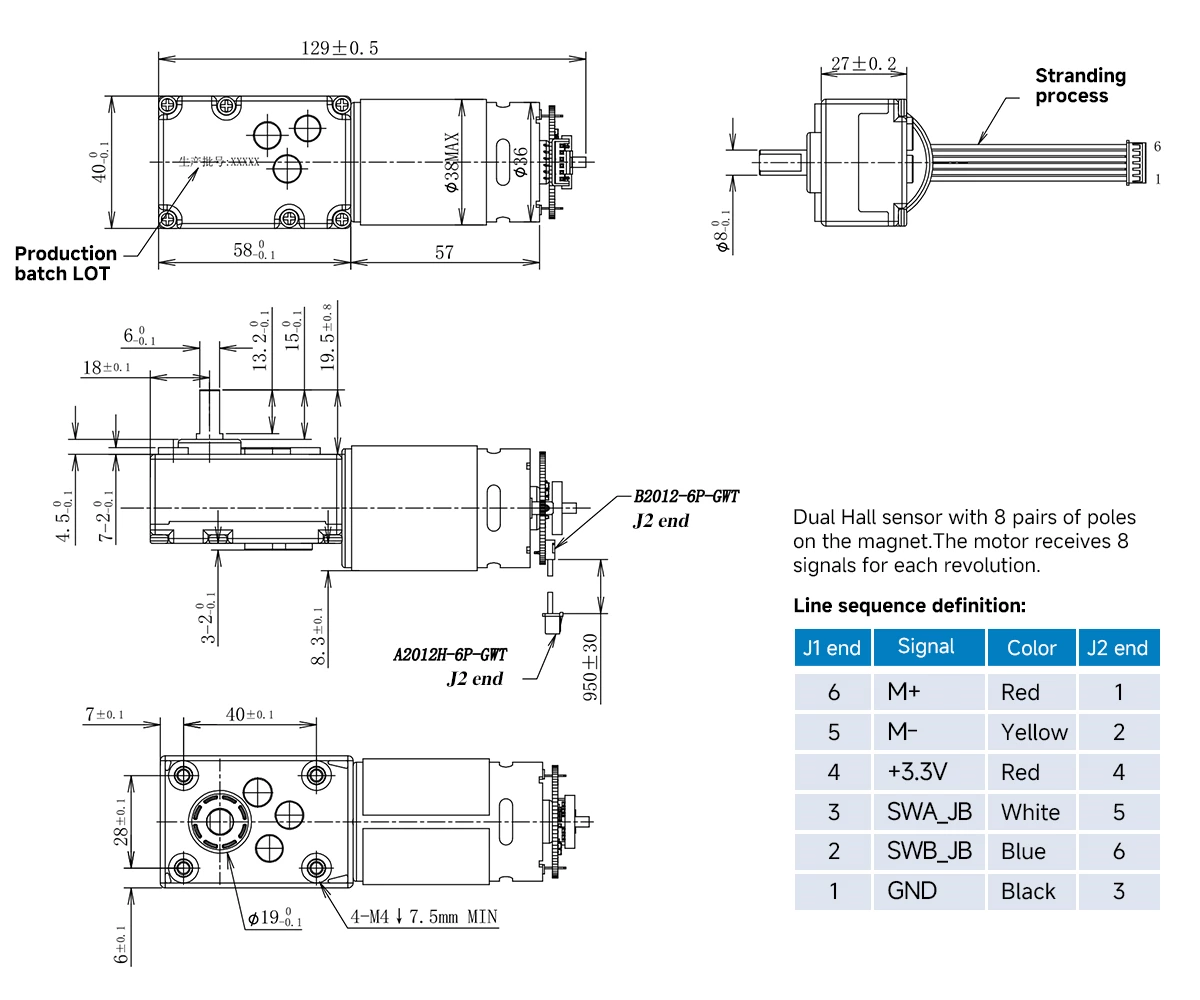

Technical Illustration:
