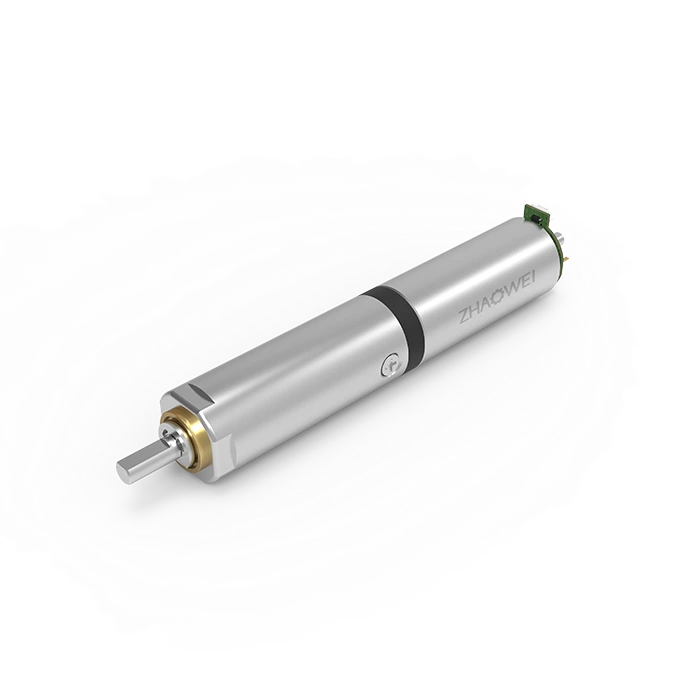

12V DC Gear Motor (PD6mm)

Model: PD006006-XXX

Gearbox Specifications: Bearing Porous bearing Rolling bearing Axial Endplay ≤0.3mm ≤0.3mm Radial Loading on Output Shaft ≤0.5N ≤5N Operating Temperature -20℃ ~ +85℃ Parameters: Gearbox Stages 1 2 3 4

Diameter
6mm
Voltage Range
3.0V
Reduction Ratio
4.8-1708
Max. Transmittable Power
0.2W
Max. Continuous Torque
0.025N.m
Max.Torque Range(gf.cm>
250-600gf.cm
Rated Speed Range
18-6250
Operating Temperature
-20…+85℃

Gearbox Specifications:

Bearing Porous bearing Rolling bearing
Axial Endplay ≤0.3mm ≤0.3mm
Radial Loading on Output Shaft ≤0.3N ≤4N
Operating Temperature -20℃ ~ +85℃

Parameters:

Gearbox Stages 1 2 3 4
Reduction Ratio 5/6 23/31/41 110/148/198/266 531/711/952/12751708
Max Rated Torque (gf.cm max) 250 250 250 250
Max Instant Torque (gf.cm max) 600 600 600 600
Gearbox Efficiency (%) 85 72 57 49
Length (mm) 9.7 12.1 14.5 16.9
Gear backlash ≤3°

Drawing:

PD6mm technical parameters

Motor Specifications:

Motors (Optional) Stepper motor
Voltage (Optional) 3-12V
Input Speed ≤30,000rpm
Current 100mA max

Performance Data:

Model Rated Speed
(rpm)
 Max Speed
(rpm)
Max Rated Torque (gf.cm) Max Instant Torque
(gf.cm)
Gear Ratio  Length
 (L1)
(mm)
Overall Length
(L)
(mm)
ZWBPD006006-5 1563 6250 250 600 4.8 9.7 23.7
ZWBPD006006-6 1166 4666 250 600 6.43
ZWBPD006006-23 326 1302 250 600 23.04 12.1 26.1
ZWBPD006006-31 243 972 250 600 30.86
ZWBPD006006-41 181 726 250 600 41.33
ZWBPD006006-110 68 271 250 600 110.6 14.5 28.5
ZWBPD006006-148 51 203 250 600 148.1
ZWBPD006006-198 38 151 250 600 198.4
ZWBPD006006-266 28 113 250 600 265.7
ZWBPD006006-531 14 57 250 600 530.8 16.9 30.9
ZWBPD006006-711 11 42 250 600 711.0
ZWBPD006006-952 8 32 250 600 952.2
ZWBPD006006-1275 6 24 250 600 1275.2
ZWBPD006006-1708 4 18 250 600 1707.9

* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
