Zhaowei Machinery & Electronics Co., Ltd.

Camera Focus Drive System


Load Current
175mA MAX
Rated Voltage
5.0V DC
No-load Current
75mA MAX
No-load Speed
153±15% RPM (Revolutions Per Minute)
63dB MAX

Product Description:

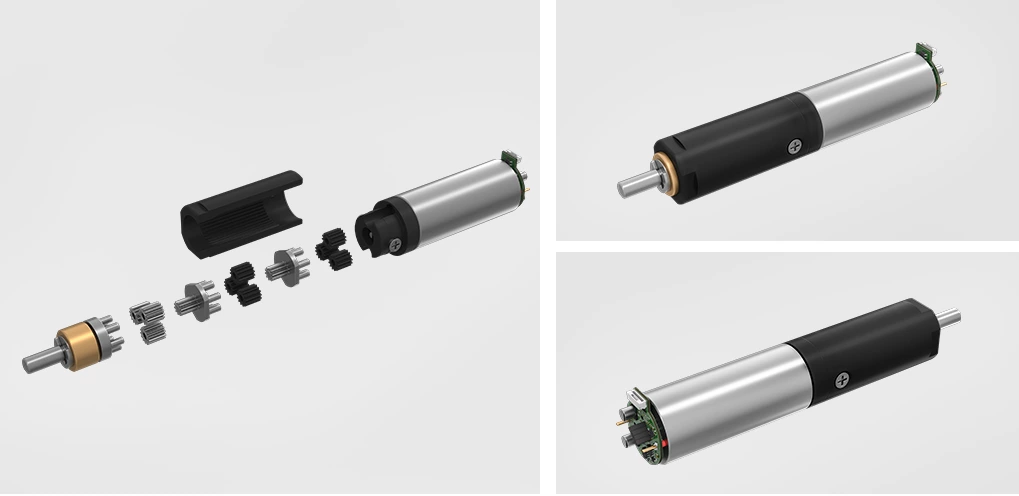

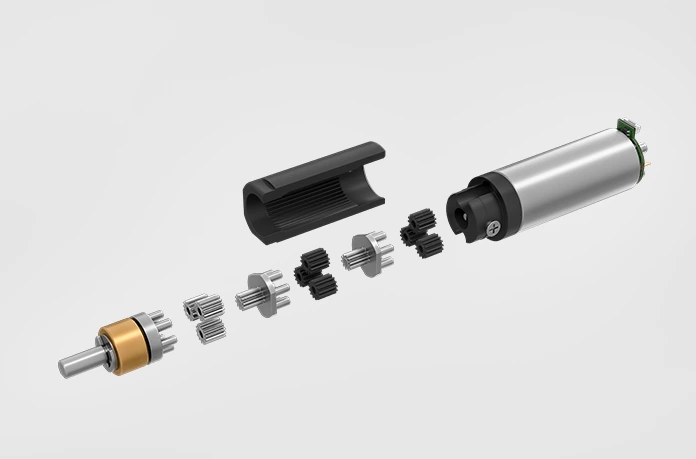

The ZHAOWEI Camera Focus Drive System is composed of a 6mm DC coreless motor with 6mm plastic planetary gearbox, achieving a compact structure, minimal space occupancy, and extended lifespan of the planetary gearbox.

Camera Focus Drive System Motor

We offers product design, development, and production tailored to the specific needs of customers. For more details, please contact our customer service.
