Zhaowei Machinery & Electronics Co., Ltd.

Lens Calibration Motor


Load Current
175mA MAX
Rated Voltage
5.0V DC
Load Speed
142±15% RPM
No-load Current
75mA MAX
No-load Speed
153±15% RPM
63dB MAX

Product Description:

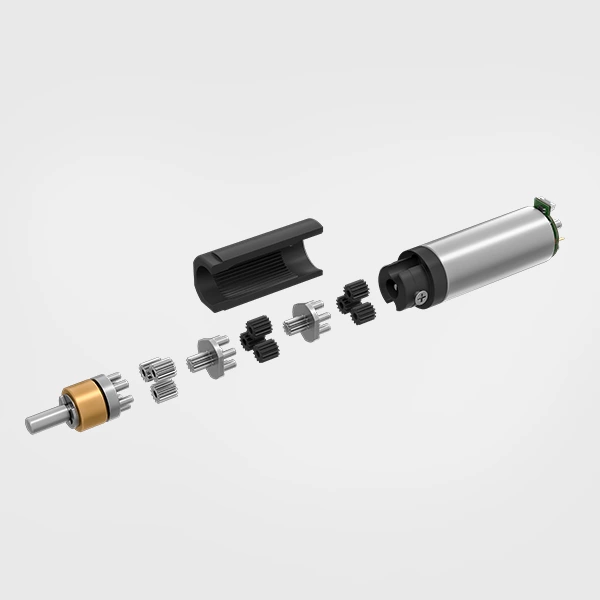

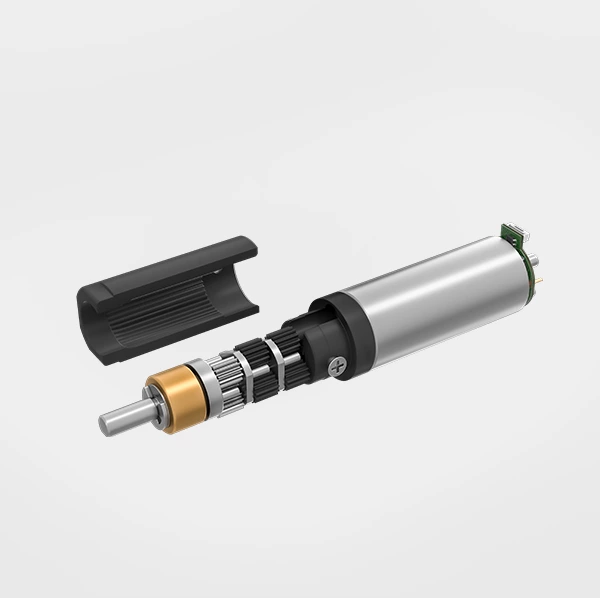

ZHAOWEI lens calibration drive system is composed of 6mm DC coreless motors and 6mm plastic planetary gearboxes.It has a compact structure and takes up small space,as well as has long service life.

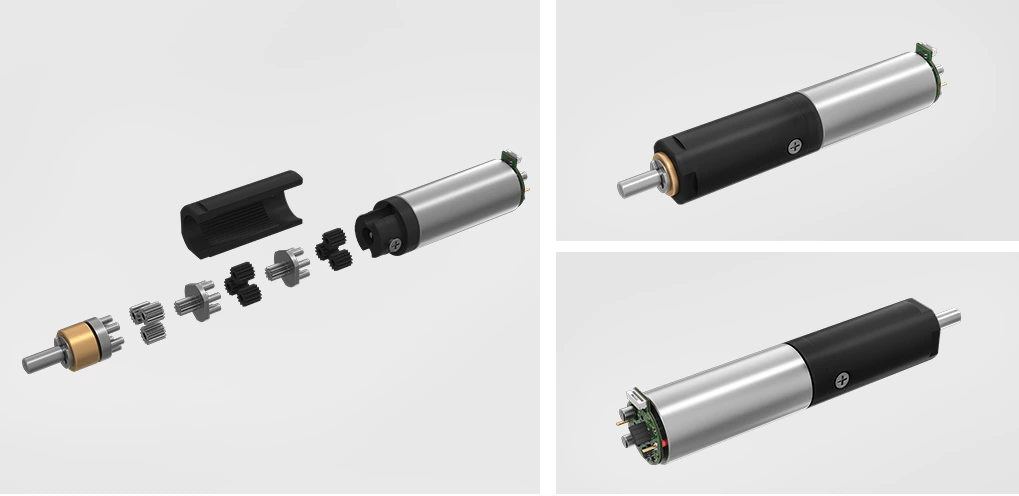

                         Lens Calibration Motor

Consumer Electronics Drive Products
