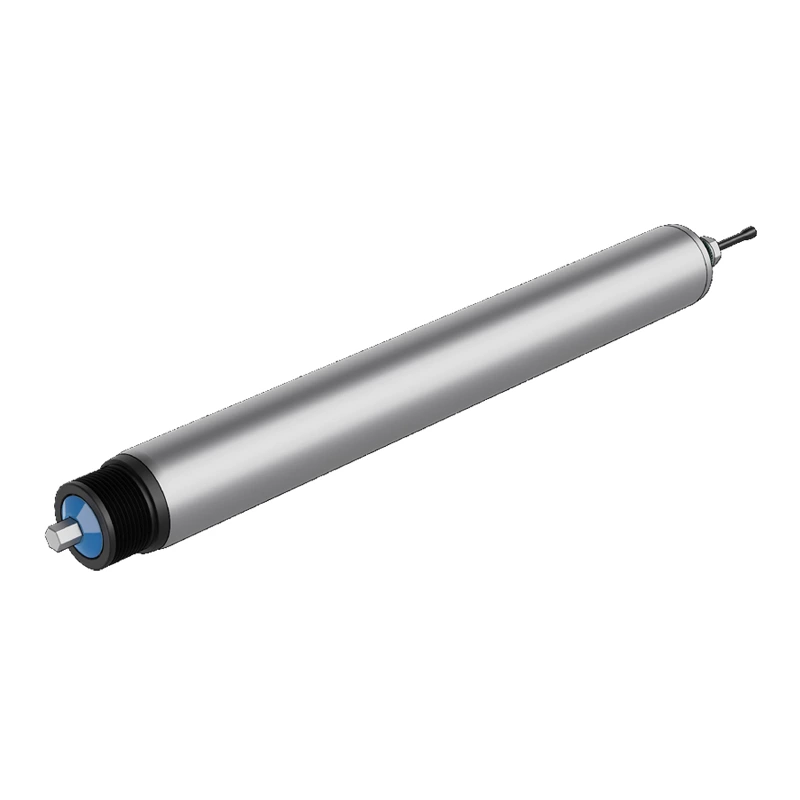

60mm Drum Motor Series

Model: ZW60Series

·High efficiency ·High Torque ·High stability guarantee ·Easy Installation
·Low noise ·Low power ·Low failure rate

Diameter

60mm

Voltage Range

24V/48VDC, Customizable AC

Reduction Ratio

5-108

Power

35-120W

Constant torque

0.26-12.26Nm

Rated Line Speed

0.2-4.34m/s

Operating Temperature

-40…+55℃

Application：Focused on pallet conveyor applications, it can support payloads up to 1500KG, making it easier to design and install drive pallet conveyors.

Gearbox Specifications:

Gear Ratios	5 / 7 / 13 / 18 / 25 / 30 / 42 / 65 / 78 / 90 / 108
Gearbox Material	R: Powder metallurgy, IP54 S: Ground gear, IP54 Q: Powder metallurgy, IP66 T: Ground gear, IP66

Basic Parameter:

Rated Voltage	24V			48V
Rated Current (A)	2.2	3.1	4.5	1.1	1.5	2.3
Start-up Current (A)	5.5	7.8	11.3	2.8	3.8	5.8
Rated Power (W)	35	50	80	35	50	80
Maximum Noise	50db
Cable Length	Hall Power Roller: 1m （extendable by 1m) Magnetic Encoder Power Roller: 0.5m standard (extendable by 2m)
Protection Class	IP54/IP66
Tube Material	Galvanized Steel, Stainless Steel
Tube Size	φ60x2mm
Shafts	M12 male thread hex , Hex 11 , Double D
Operating Temperature	-40℃ ~ 55℃

Drive Mode：

Z: Direct drive;
P: Poly-V pulley;
O: O-type pulley;
L: Double-strand sprocket (08B14T);
X: Non-standard

Optional materials：
1: Plastic; 2: Carbon steel, galvanized; 3: Carbon steel, blackened; 4: Stainless steel; 5: Aluminum alloy;
7: Carbon steel, chrome plated

Rated Output Power	C: Magnetic encoder; D: Hall 1:35 W, 2:50 W, 3:80W, 8:120W
Cable outlet configurations	T1: With M12×1 threaded HEX; T2: HEX11 without thread; T3: Double-D; T4: Dual-bearing hexagonal shaft (stainless steel)
Non-cable end mounting options	H: Carbon steel, galvanized; K: Stainless steel; 3: M8 internal thread; 4: M10 internal thread; 6: Double-D

Drawing:

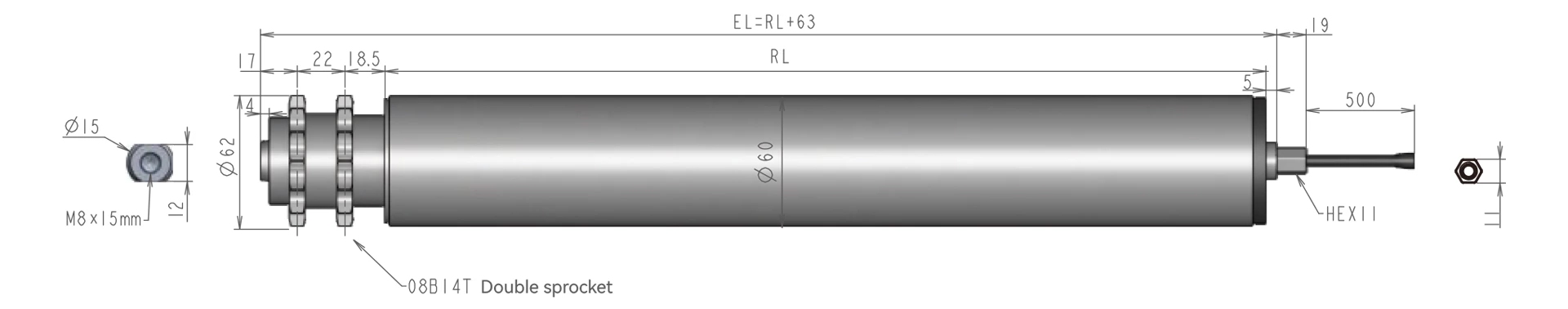

L: Sprocket

60mm Drum Motor Series

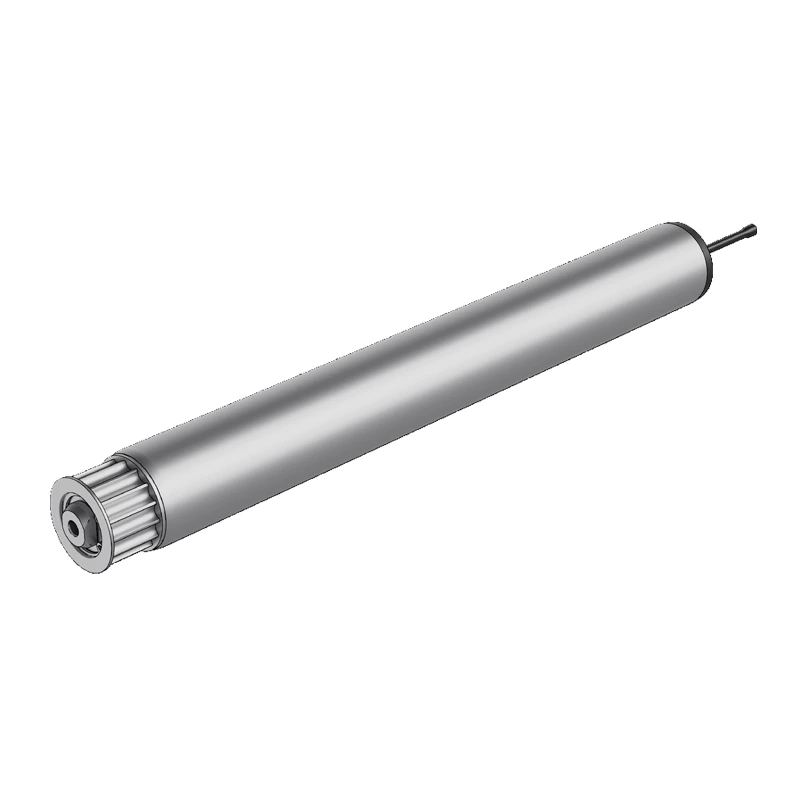

N: Timing Belt

/uploads/2601/50mm-n.jpg

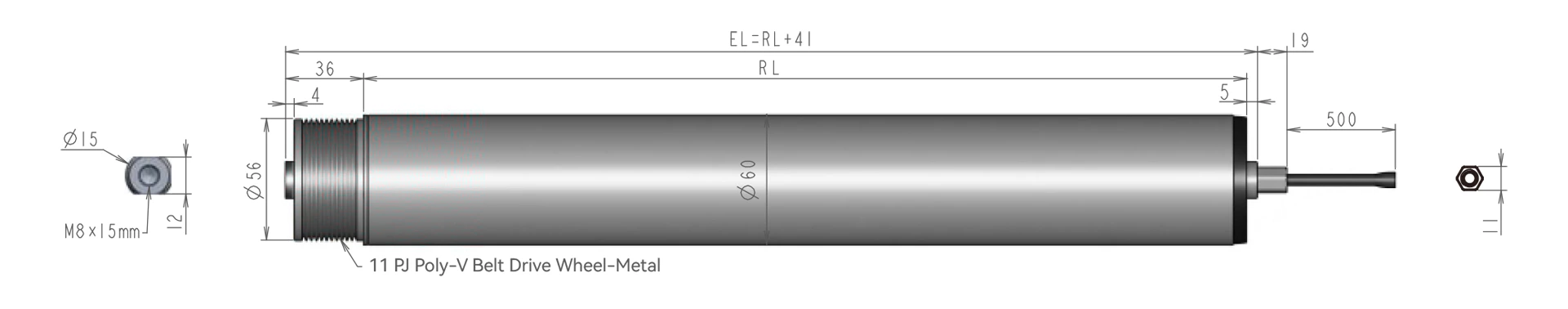

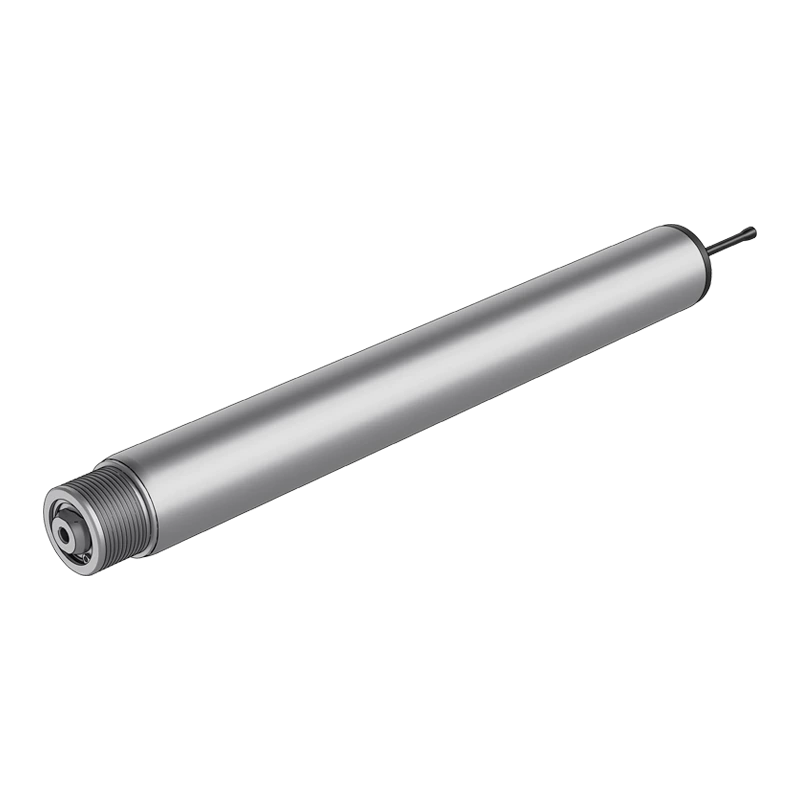

M: Poly-V Belt Drive-Metal Wheel

60mm Drum Motor Series

O：Roung Belt

50mm-O

Performance Data:

				120W
Speed Code	Rated Voltage (VDC)	Ratio	Rated Output (rpm)	Rated Line Speed (m/s)	Rated Turque (N.m)	Start-up Torque(N.m)	Playload* (μ=0.05)KG
S3	48	13	769.23	2.42	1.55	3.88	65
S4	48	18	555.56	1.75	2.1	5.25	85
S5	48	25	400	1.26	2.91	7.28	120
S6	48	30	333.33	1.05	3.49	8.73	145
S7	48	42	238.1	0.75	4.89	12.23	200
S8	48	65	154.32	0.48	7.35	14.7	300
S9	48	78	128.21	0.4	8.85	17.7	360
S10	48	90	111.11	0.35	10.21	20.42	420
S11	48	108	92.59	0.29	12.26	24.52	500

				80W			50W			30W
Speed Code	Ratio	Rated Output (rpm)	Rated Line Speed (m/s)	Rated Turque (N.m)	Start-up Torque(N.m)	Playload* (μ=0.05)KG	Rated Turque (N.m)	Start-up Torque(N.m)	Playload* (μ=0.05)KG	Rated Turque (N.m)	Start-up Torque(N.m)	Playload* (μ=0.05)KG
S1	5	1380	3.61	0.6	1.49	25	0.36	0.9	15	0.26	0.65	10
S2	7	986	2.58	0.84	2.09	35	0.49	1.23	20	0.34	0.85	15
S3	13	531	1.39	1.55	3.88	65	0.91	2.28	40	0.64	1.6	25
S4	18	383	1	2.1	5.24	85	1.27	3.18	50	0.89	2.23	35
S5	25	276	0.72	2.91	7.28	120	1.76	4.4	75	1.24	3.1	50
S6	30	230	0.6	3.49	8.73	145	2.13	5.33	90	1.49	3.73	60
S7	42	164	0.43	4.89	12.22	200	2.96	7.4	125	2.07	5.18	85
S8	65	106	0.28	7.35	14.71	300	4.58	11.45	185	2.95	7.38	130
S9	78	88	0.23	8.85	17.7	360	5.07	12.68	225	3.55	8.88	155
S10	90	77	0.2	10.21	18	420	5.89	14.73	260	4.1	10.25	180
S11	108	64	0.17	12.26	18	500	7.07	17.68	310	4.95	12.38	215

Tapered Reference Dimensions：

Length	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
Min. Dia.	52.5	55.6	52.5	55.6	52.5	55.6	52.5	55.6	52.5	55.6	52.5	55.6	52.5	55.6	52.5
Max. Dia.	71.2	77.6	77.6	84	84	90.4	90.4	96.8	96.8	103.2	103.2	109.9	109.9	116	116

*The drive loads are reference values, the exact values need to be calculated in conjunction with the actual application.

60mm Drum Motor Series

Gearbox Specifications:

Basic Parameter:
