Zhaowei introduces a brand-new roller motor platform, equipped with self-developed high-performance gearboxes, motors, and controllers, providing customers with a stable and efficient roller motor solution. Additionally, Zhaowei Electromechanical integrates R&D, design, manufacturing, and sales, offering a highly effective solution for your material handling needs.

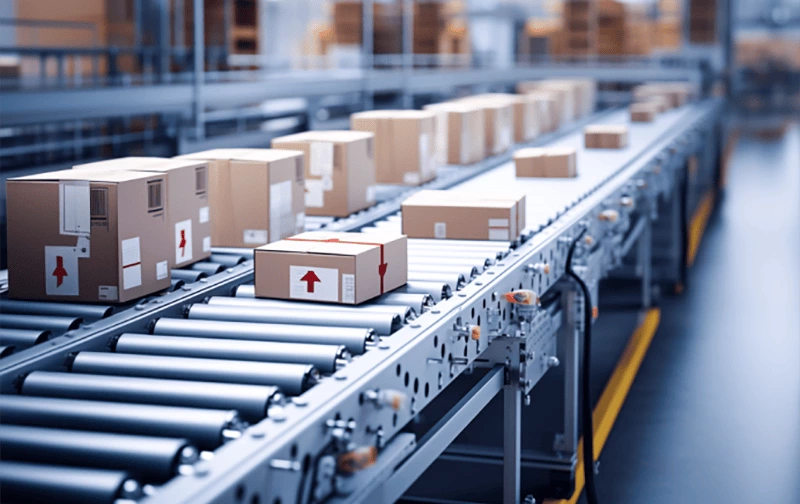

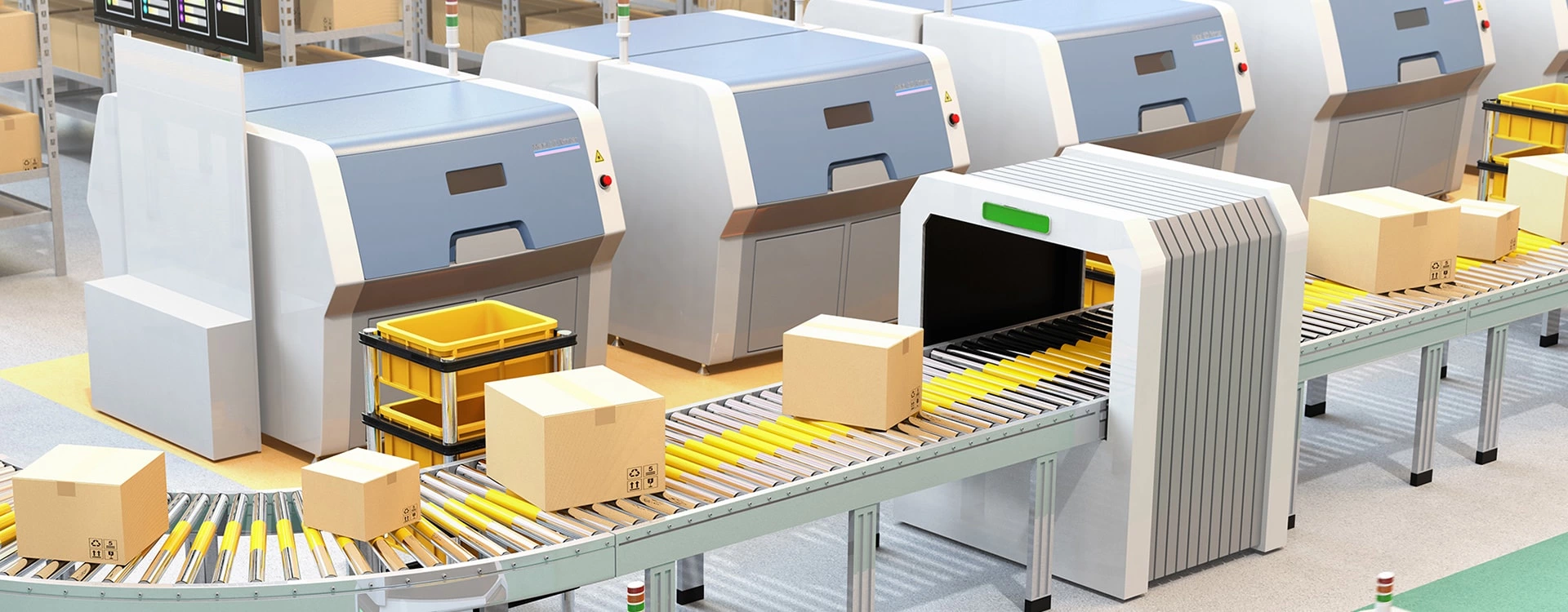

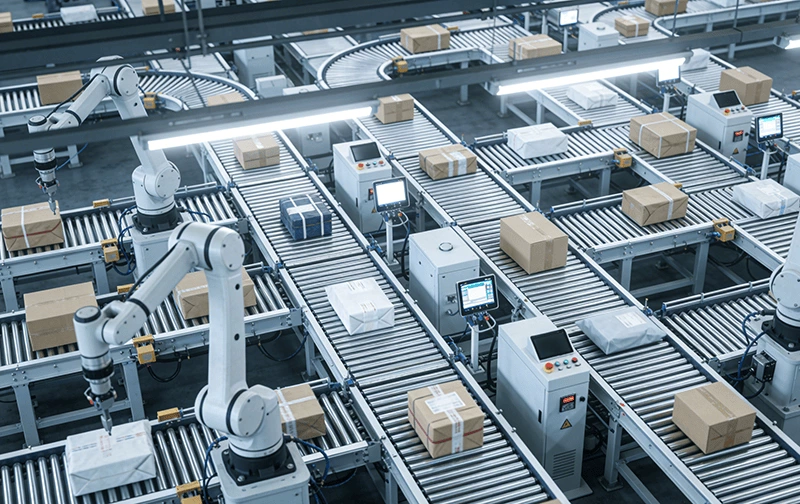

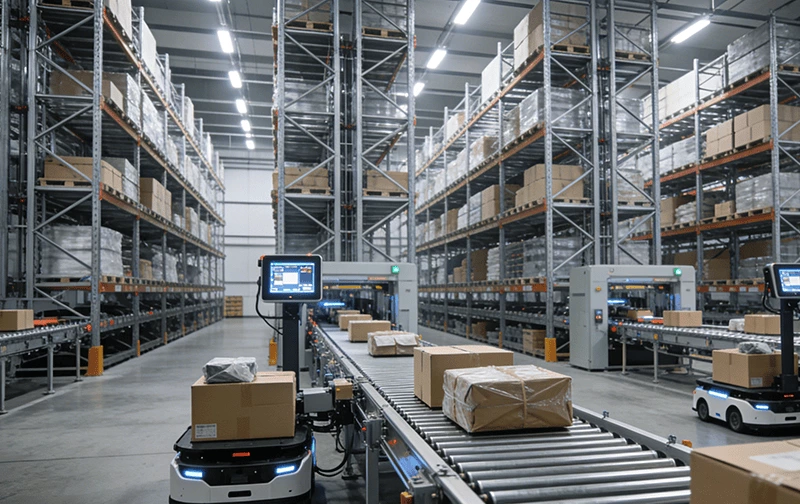

ZHAOWEI drum motors are widely used in logistics conveying systems, smart warehousing, and industrial automation production lines. They are ideal for belt conveyors, roller conveyor lines, automated sorting systems, and packaging equipment. Backed by ZHAOWEI’s strong expertise in precision gearing, micro transmission systems, and motor drive technologies, these drum motors deliver high torque output, stable operation, low noise, and high efficiency.
With a highly integrated design, ZHAOWEI drum motors help reduce system complexity while improving overall reliability and operational efficiency. Multiple specifications and customized solutions are available to meet different load capacities, speed requirements, and demanding working conditions, enabling customers to build more efficient and intelligent conveying systems.
| Model | Diameter | Voltage | Roung_belt | Power | Load_speed | Rated Line Speed | Torque-constant | Playload | Reduction_ratio | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50mm Drum Motor Series ZW50Series | 50mm | 24V/48VDC, Customizable AC | Optional | 35-80W | 64-1380 rpm | 0.17-3.61m/s | 0.6-12.38Nm | 30-360(μ=0.05)KG | 5-108 | ||
|
60mm Drum Motor Series ZW60Series | 60mm | 24V/48VDC, Customizable AC | Optional | 35-120W | 63.89-1380 rpm | 0.2-4.34m/s | 0.26-12.26Nm | 10-500(μ=0.05)KG | 5-108 | ||
|
76mm Drum Motor Series ZW76Series | 76mm | 24V/48VDC, Customizable AC | Optional | 220W, 255W | 75-264.71 rpm | 0.30-1.05m/s | 8.48-35.18Nm | 350-1500(μ=0.05)KG | 17-72 | ||
|
80mm Drum Motor Series ZW80Series | 80mm | 24V/48VDC, Customizable AC | Optional | 220W, 255W | 75-264.71 rpm | 0.31-1.11m/s | 8.48-35.18Nm | 320-1400(μ=0.05)KG | 17-72 | ||
|
89mm Drum Motor Series ZW89Series | 89mm | 48VDC / 220VAC | Optional | 220W, 255W, 750W | 27-264.71 rpm | 1.23-14.56m/s | 8.48-137.58Nm | 280-1200(μ=0.05)KG | 17-96 | ||
ZHAOWEI team welcomes your arrival,By understanding your needs in advance, we will prepare corresponding solutions to facilitate on-site coordination and quickly address your concerns. We look forward to communicating and collaborating with you!
ZHAOWEI’s micro drive systems apply in diverse areas all around the world to deliver the power, precision, and efficiency to motion solutions. Our sales and engineering support teams are ready to assist you with any questions, including quotation, application support, and product configuration. Please submit your requirements through our Custom Service Form to ensure a faster response.
