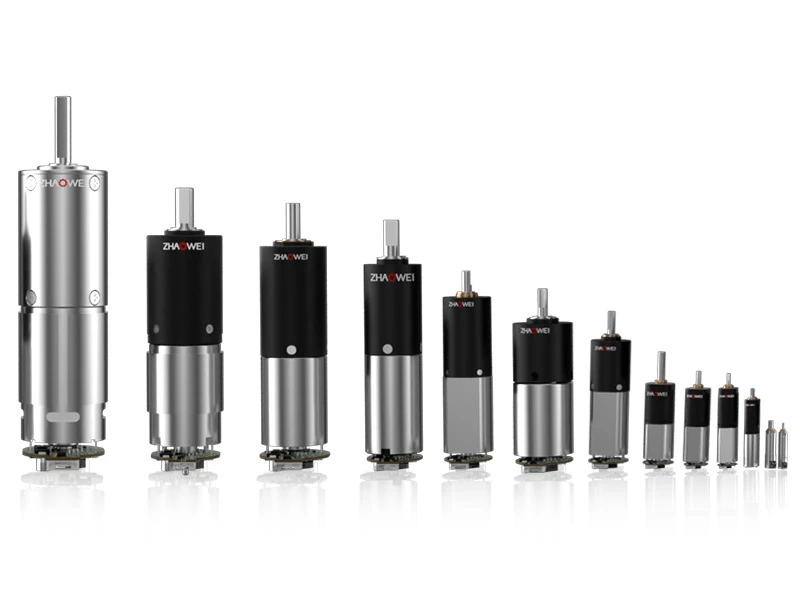

Micro Gear Motors
We offer micro gear motor solutions to meet your specific requirements. The micro gear motors from ZHAOWEI have the characteristics of high torque, compact size, low noise, sutiable for many industrials.
The specification range of our standard gear motors: Diameter: 3.4mm -38mm; Voltage: 1.5V, 3V, 6V, 12V, 24V, and others; Torque: 50 gf.cm-80000 gf.cm.Optional micro motors for gearboxes include brushless dc motors, brushed dc motors, stepper motors, coreless motors and encoders.
Besides these standard gear motors, we mainly provide custom micro gear motor solutions to better meet your requirements. Contact us for more info.
| Diameter | Voltage Rang(V) | Rated Speed Range(rpm) | Max. Torque(gf.cm) | Optional Motor | |
|---|---|---|---|---|---|
| 3.4mm | 1.5-5 | customization | 50gf.cm | stepper motor | Details ▶ |
| 4mm | 1.5-5 | customization | 140gf.cm | stepper motor | Details ▶ |
| 6mm | 3-12 | 4-1563 rpm | 600gf.cm | stepper motor,coreless motor | Details ▶ |
| 8mm | 3-12 | 14-3361 rpm | 750gf.cm | stepper motor,brush motor,coreless motor | Details ▶ |
| 10mm | 3-24 | 17-3917 rpm | 1000gf.cm | stepper motor,brush motor,coreless motor | Details ▶ |
| 12mm | 3-24 | 6-1875rpm | 2000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 16mm | 3-24 | 6-1875 rpm | 5000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 20mm | 3-24 | 6-1875 rpm | 10000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 22mm | 3-24 | 6-1875 rpm | 15000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 24mm | 3-24 | 6-1875 rpm | 20000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 28mm | 3-24 | 5-1658 rpm | 40000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 32mm | 3-24 | 7-469 rpm | 50000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 38mm | 3-24 | 4-1525 rpm | 80000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
