Conveyor Electric Drum Motor
- Voltage
- 220V
- Current
- 0.12A
- Rated Speed
- 30RPM
- Operating Temperature
- -10℃～+50℃
- Storage Temperature
- -20℃～+60℃
- Max Rated Torque
- 5N.M
- Operating Life
- 20000H
The above parameters are the product performance range (for reference only). Didn't find what you want? Tell us your parameter requirements and we will provide you with customized solutions.
Data Sheet

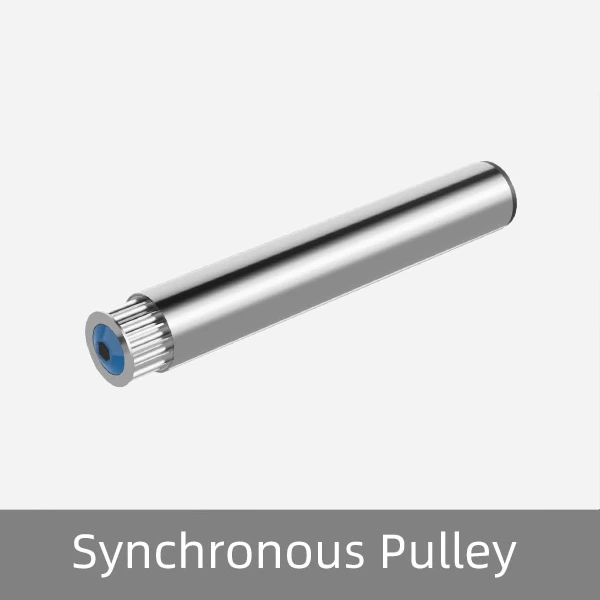

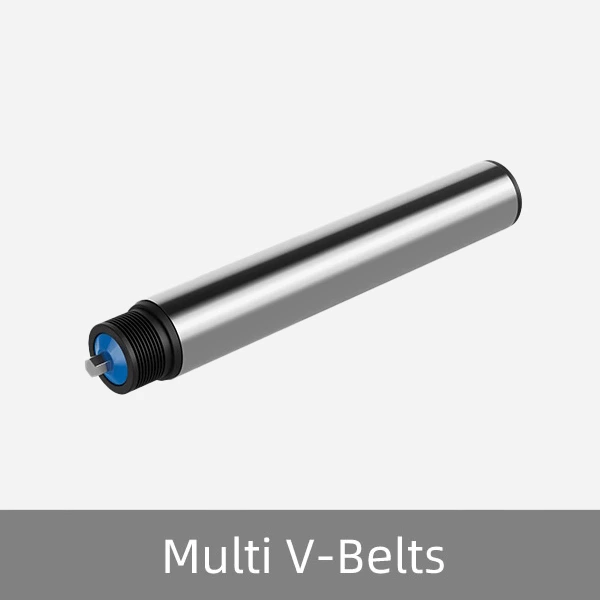

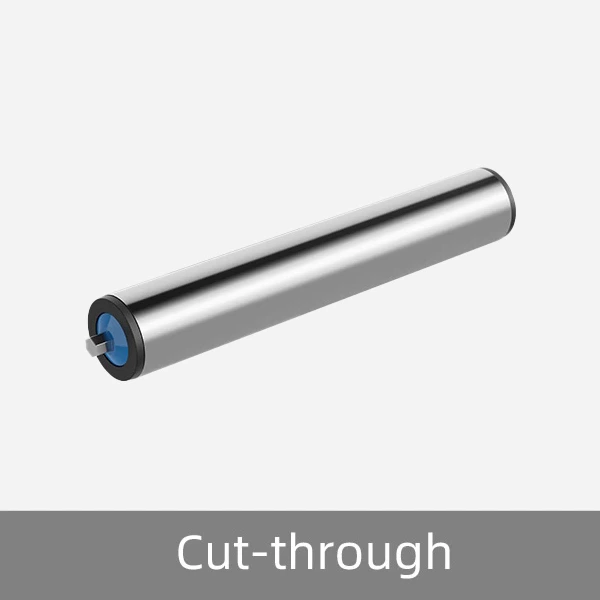

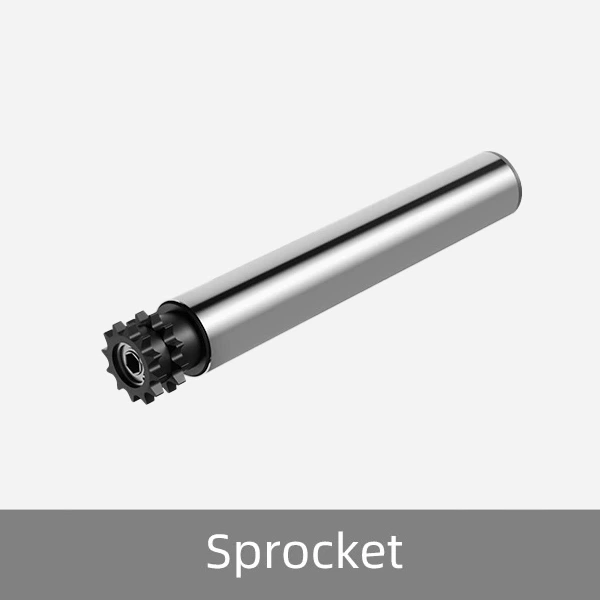

Product Description
Conveyor is a common device in industry manufacture, which widely used in mining, metallurgy, construction sites, ports, and logistics transport. However, as an important part of conveyor, most drum motors on the current market are troubled by complicated structure, cumbersome installation, and occupation space. In order to solve above problems, ZHAOWEI puts forward a drum motor drive solution based on 20 years efforts committed to micro drive system design, development, and manufacture. The drum motor drive system integrates with planetary gearbox, drive motor, control module, power supply, and controller, which is compact, easy to assemble and well sealed. It applies the principle of differential gearbox to rotate the outer tube and then drive the large load conveyor move. ZHAOWEI’s drum motors have 4 models, whose length range from 150mm to 500mm, diameters range from 40mm to 60mm. The operating life under rated load can work at least 3000H, max to 20000H, which is enable to work under common dusty environment.
Product Specifications
-
Drum Motor
| Model | Length | Voltage | Current | Working Temperature | Storage Temperature | Operating Life |
|---|---|---|---|---|---|---|
| GM20162-05 | 150mm | 24V DC/220V AC | 0.12A | -10℃~50℃ | -20℃~60℃ | 20000H max. |
| GM20162-02 | 300mm | 24V DC/220V AC | 0.12A | -10℃~50℃ | -20℃~60℃ | 20000H max. |
| GM20162-03 | 400mm | 24V DC/220V AC | 0.12A | -10℃~50℃ | -20℃~60℃ | 20000H max. |
| GM20162-04 | 500mm | 24V DC/220V AC | 0.12A | -10℃~50℃ | -20℃~60℃ | 20000H max. |
-
Parameters
| Diameter (mm) | Nominal Power (W) | Reduction Ratio | Output Torque (Kgf.cm) | Output Speed (rpm) | Conveyer Displacement Velocity (m/s) |
|---|---|---|---|---|---|
| φ40 | 18 max. | 4 | 3 | 750 | 1.610 |
| 6 | 5 | 500 | 1.073 | ||
| 16 | 13 | 188 | 0.403 | ||
| 36 | 30 | 83 | 0.179 | ||
| 64 | 53 | 47 | 0.101 | ||
| 96 | 80 | 31 | 0.067 | ||
| 156 | 80 | 19 | 0.041 | ||
| φ50 | 40 max. | 4 | 5 | 750 | 1.610 |
| 6 | 8 | 500 | 1.073 | ||
| 16 | 21 | 188 | 0.403 | ||
| 36 | 48 | 83 | 0.179 | ||
| 64 | 85 | 47 | 0.101 | ||
| 96 | 128 | 31 | 0.067 | ||
| 156 | 150 | 19 | 0.041 | ||
| φ60 | 60 max. | 4 | 8 | 750 | 1.610 |
| 6 | 12 | 500 | 1.073 | ||
| 16 | 32 | 188 | 0.403 | ||
| 36 | 72 | 83 | 0.179 | ||
| 64 | 128 | 47 | 0.101 | ||
| 96 | 150 | 31 | 0.067 | ||
| 156 | 150 | 19 | 0.041 |
* The above specifications are subject to change without prior notice.
-
Drawing
Drum Motor 150mm
Drum Motor 300mm
Drum Motor 400mm
Drum Motor 500mm
