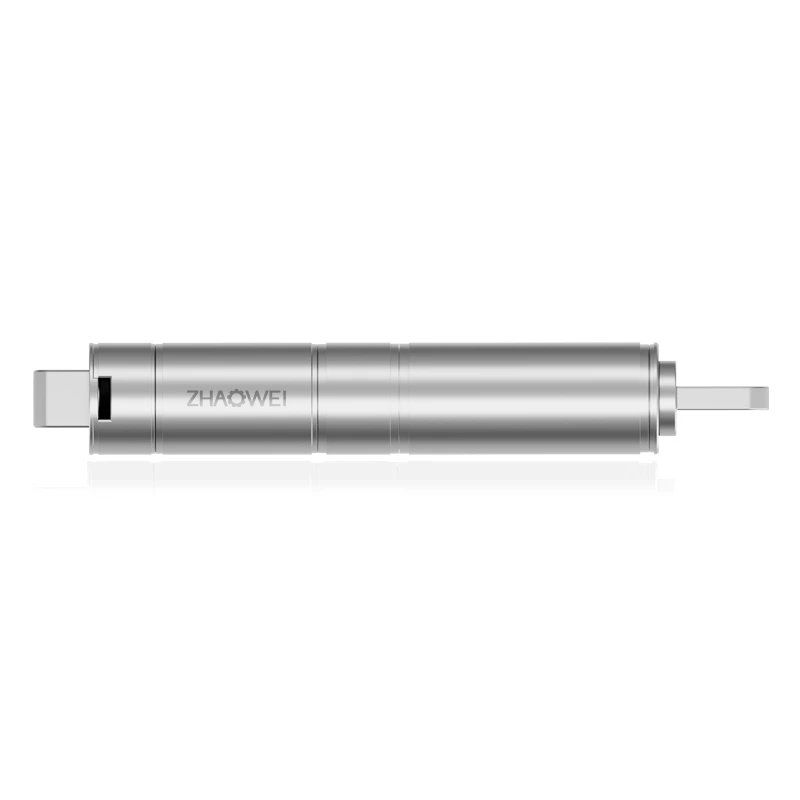

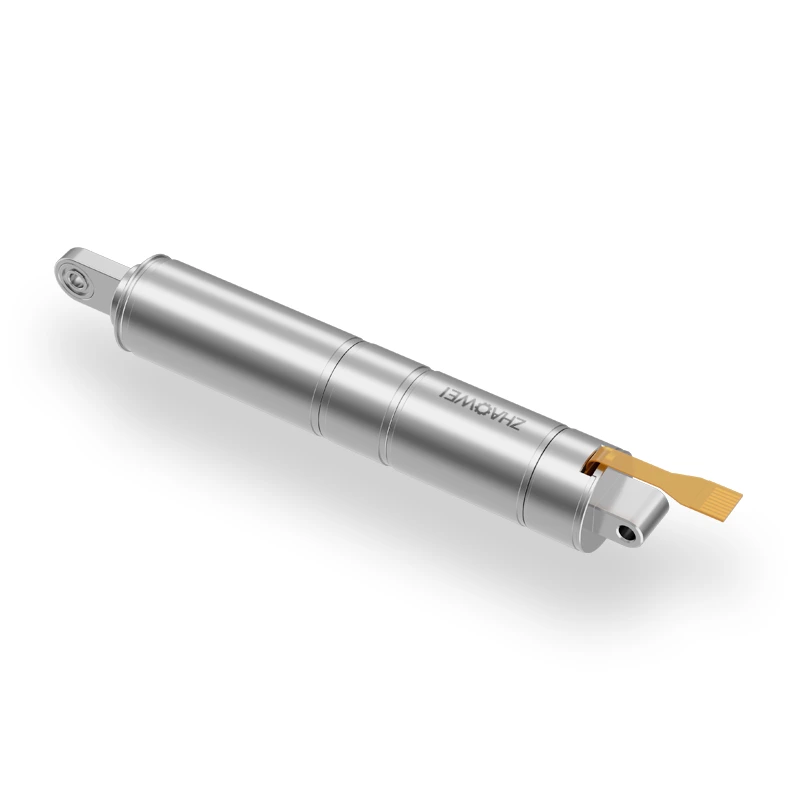

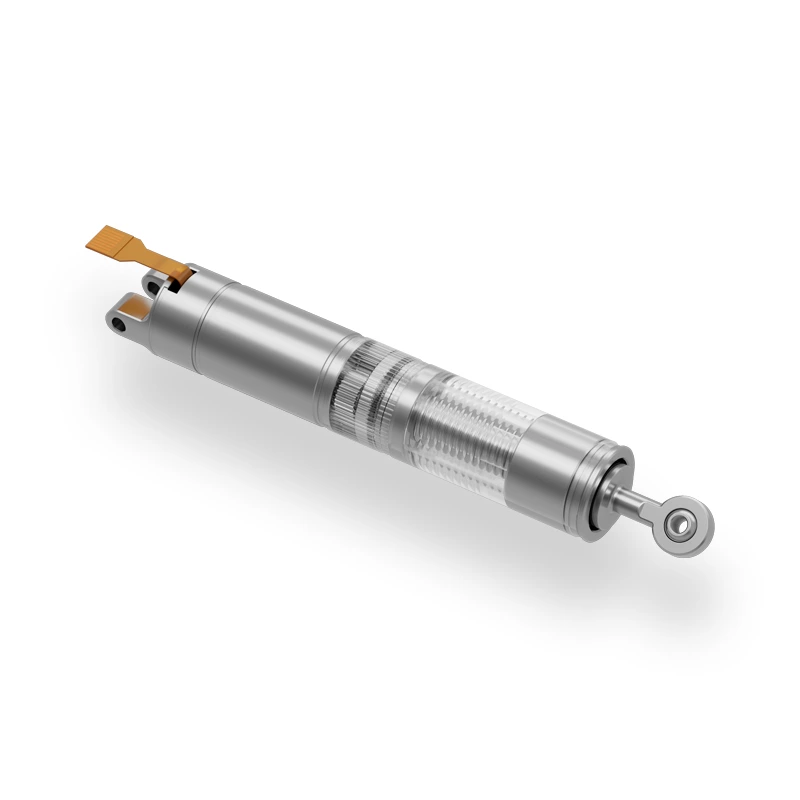

Linear Push Rod Motor For Palm
Model: GM24005-03

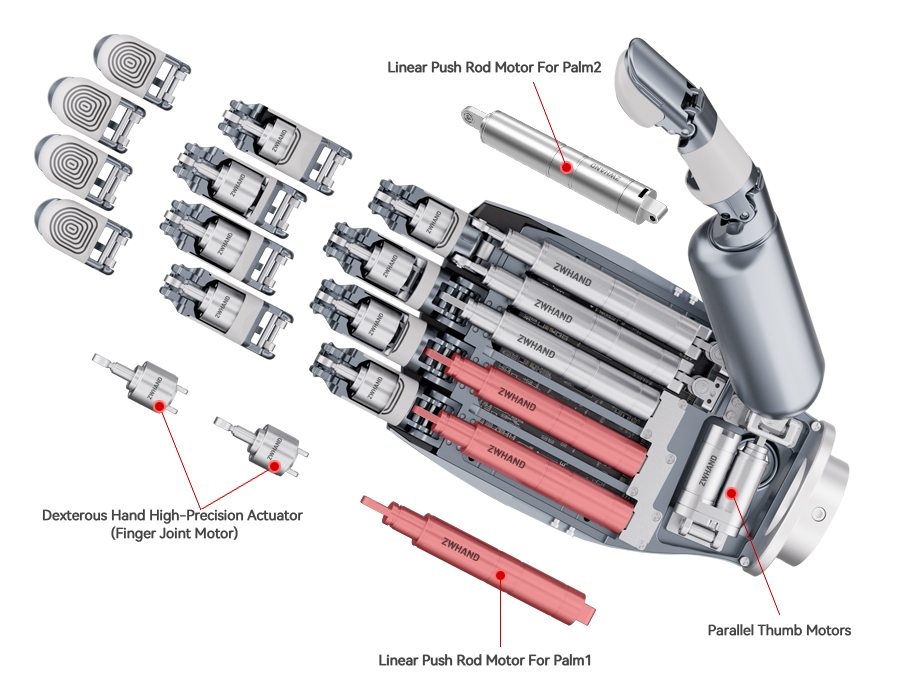

Engineered for precision and durability, the Linear Push Rod Motor supports complex palm movements that enhance grasp adaptability and object stability, enabling robots to handle a wide variety of shapes and sizes with improved efficiency.
- Diameter
- 12mm
- Rated Voltage
- 12VDC
- Weight
- 42g
- Stroke Time
- 32.8±15% mm/s
- Stroke
- 11mm(MAX)
- Operating Temperature
- -40~+85℃
Application：
·Humanoid Robotic Hands ·Service Robots ·Prosthetic Hands
·Industrial Automation ·Medical & Assistive Robotics
·Research & Robotics Development and etc.
Actuator parameters：
| Gearbox Stages | 1 | / |
|---|---|---|
| Voltage | 12 | VDC |
| No-load Current | 0.1 | A |
| Empty-load Moving Speed | 46±15% | mm/s |
| Route (Max) | 10 | mm |
| Rated Push/Pull Force | 54 | N |
| Rated Current（MAX） | 0.5 | A |
| Rated moving Speed | 32.8±15% | mm/s |
| Instantaneous allowable Pushing/Pulling Force | 160 | N |
| Reduction Ratio | 6.6 | / |
| External diameter | 12 | mm |
| Actuator Length | 61.35 | mm |
| Recommended temperature range | -40~+85 | ℃ |
| Actuator Weight | 42 | g |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.

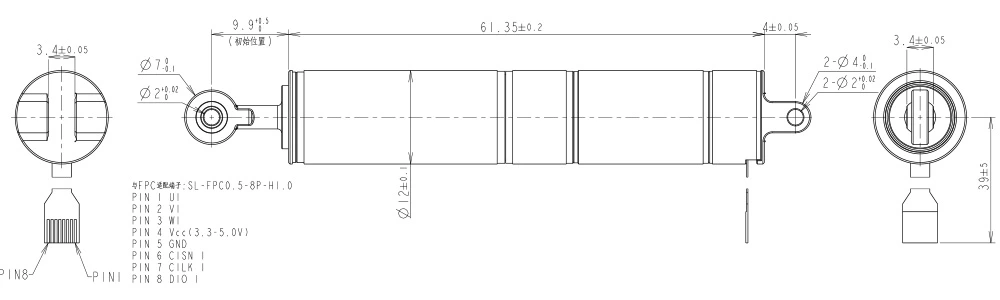

Drawing:
