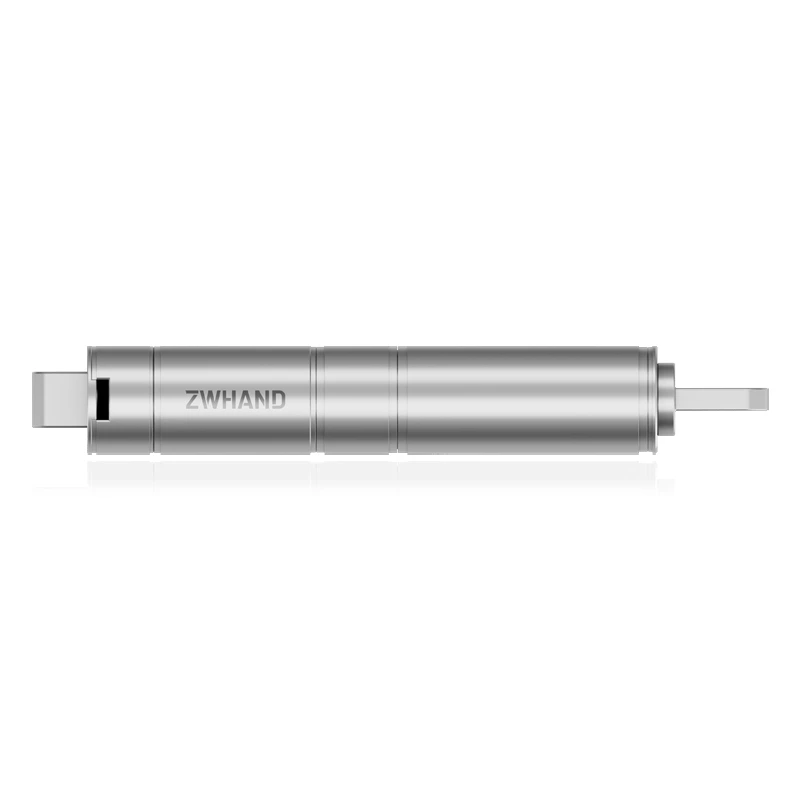

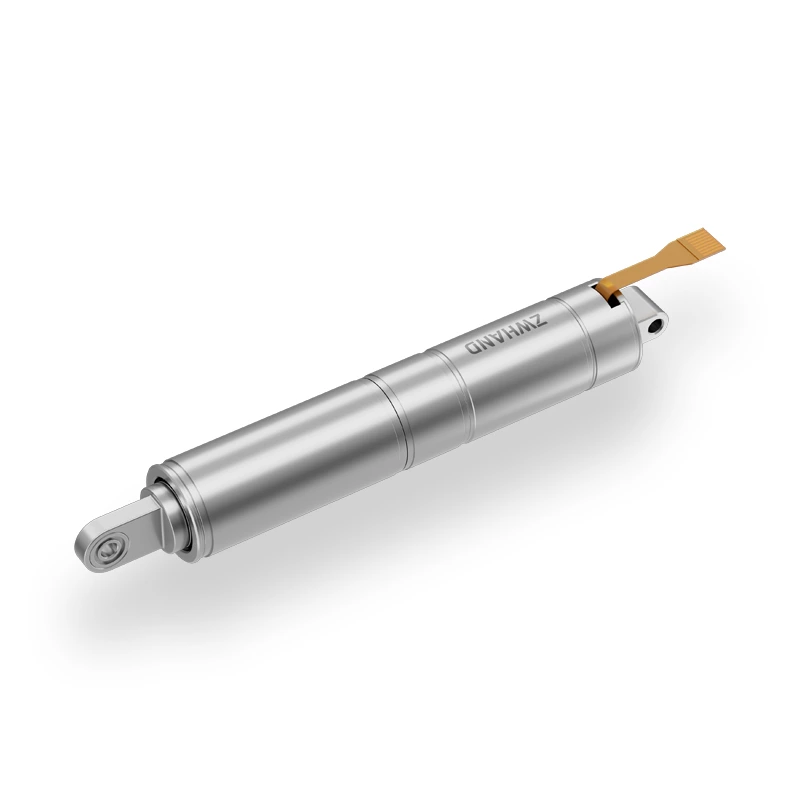

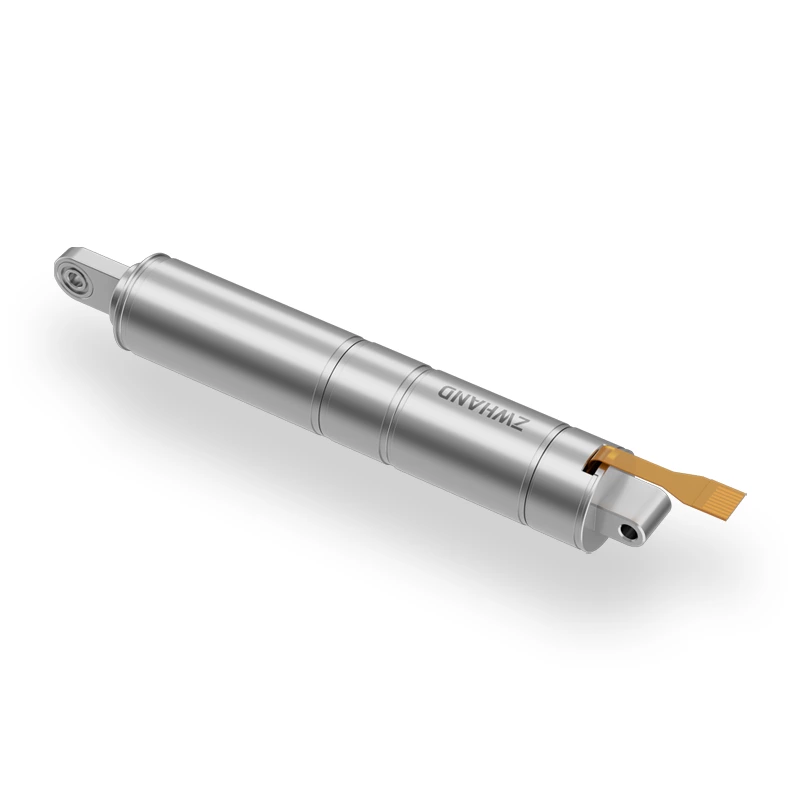

Robot neuron palm core direct push rod motor
Model: GM24005-05

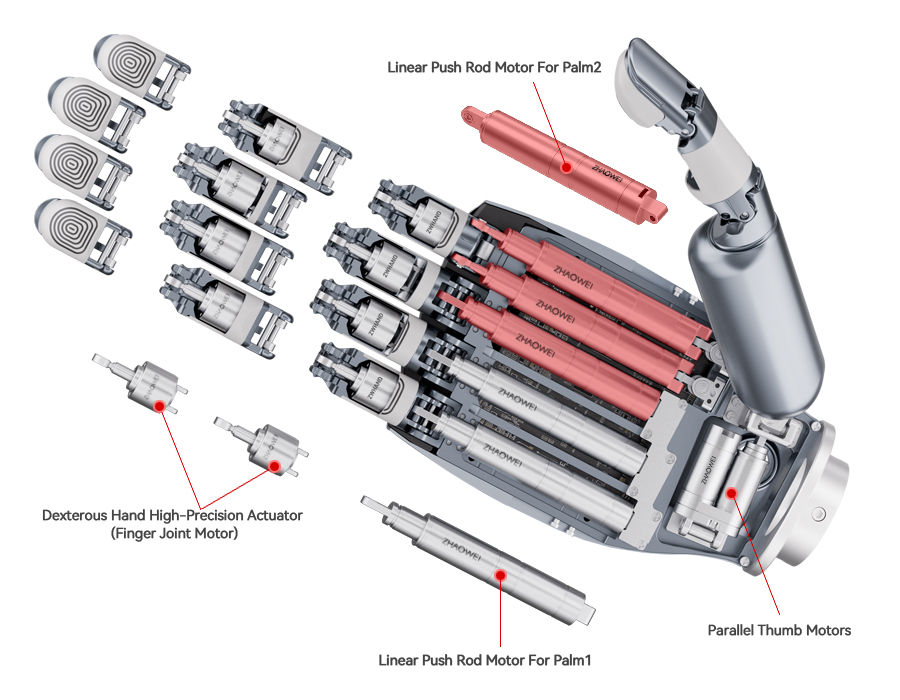

The Robot Neuron Palm Core Direct Push Rod Motor is an advanced linear actuator for intelligent robotic palms, specifically designed to function as the core execution unit within next-generation robotic dexterous hands. Acting as a “neuron-like” drive component, it enables fast, precise, and synchronized control of palm structures.
- Diameter
- 12mm
- Rated Voltage
- 12VDC
- Weight
- 42g
- Stroke Time
- 32.8±15% mm/s
- Stroke
- 11mm(MAX)
- Operating Temperature
- -40~+85℃
Application：
·Humanoid Robots (AI-Driven Systems)
·Advanced Dexterous Robotic Hands ·AI Robotics & Embodied Intelligence
·Precision Service Robots ·Medical Robotics & Bionic Syst and etc.
Actuator parameters：
| Gearbox Stages | 1 | / |
|---|---|---|
| Voltage | 12 | VDC |
| No-load Current（MAX） | 0.1 | A |
| NO-load Moving Speed | 46±15% | mm/s |
| Route (MAX) | 10 | mm |
| Rated Push/Pull Force | 54 | N |
| Rated Current (Max) | 0.5 | A |
| Rated Linear Speed | 32.8±15% | mm/s |
| Instantaneous allowable pushing and pulling force | 160 | N |
| Reduction Ratio | 6.6 | / |
| Extemal diameter | 12 | mm |
| Actuator Length | 61.35 | mm |
| Recommended temperature range | -40~+85 | ℃ |
| Actuator Weight | 42 | g |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.

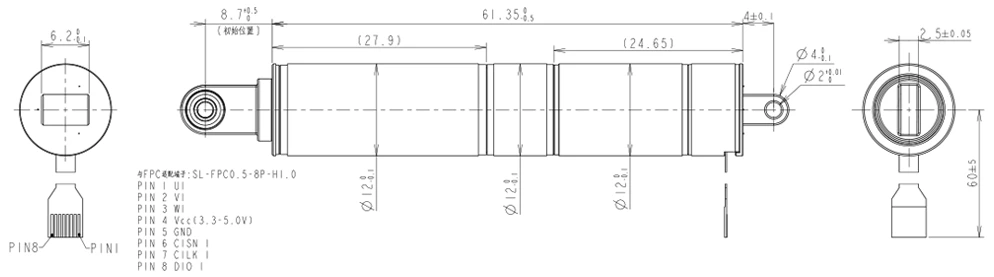

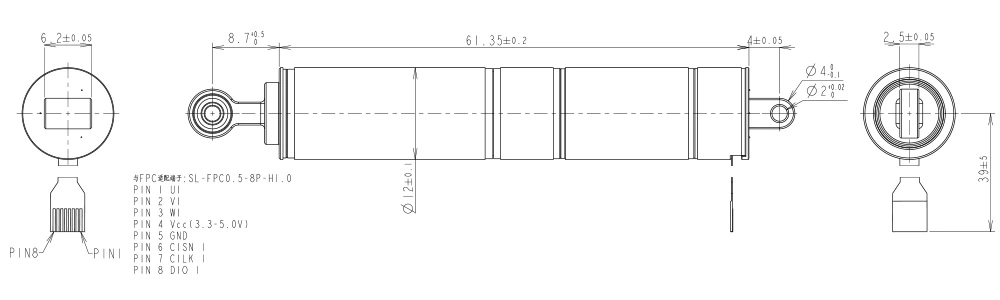

Drawing:
