Robotic Pool Cleaner Drive System

Model:

Load Current
200mA MAX
Rated Voltage
20VDC
Load Speed
105土10%RPM
Rated Torque Max. (mNm)
0.5N.m
Reduction Ratio
76：1
Noise
≤ 65dB (Side 30CM)
Operating Life
> 900 Hours (20.0V DC, Rated Load 0.5Nm, Run for 180 minutes, Pause for 10 minutes; 180 minutes, Pause for 10 minutes; as one cycle)
Enquiry
Robotic Pool Cleaner Drive System
Robotic Pool Cleaner Drive System
Robotic Pool Cleaner Drive System

Product Description:

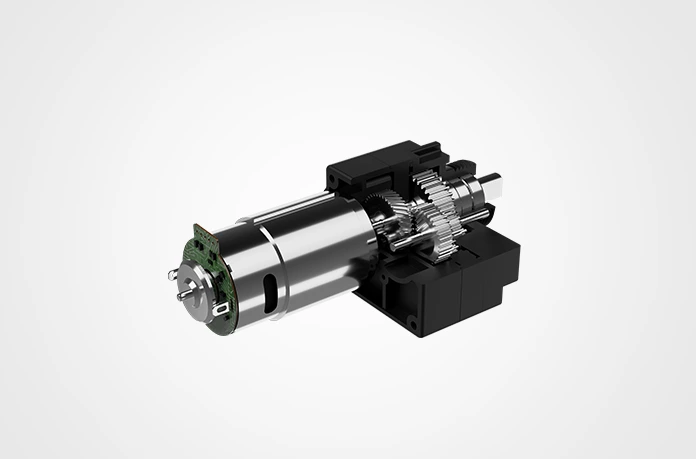

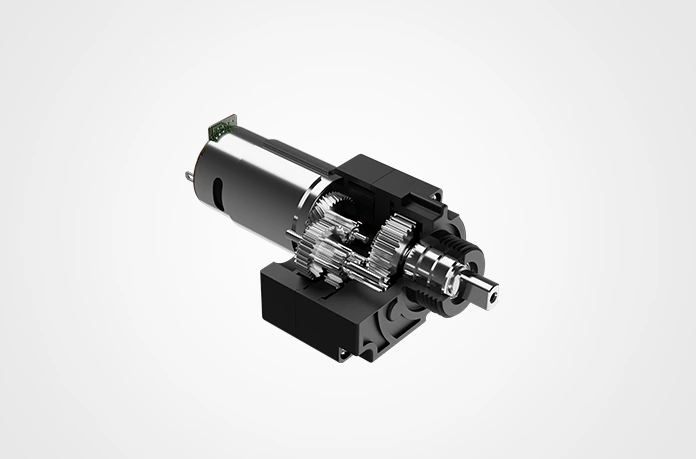

The ZHAOWEI robotic pool cleaner drive system utilizes a brushless motor in combination with a multi-stage gearbox transmission to achieve forward, backward, and turning motions. In conjunction with the cleaning roller brush, it can effectively clean the pool floor and corner debris.

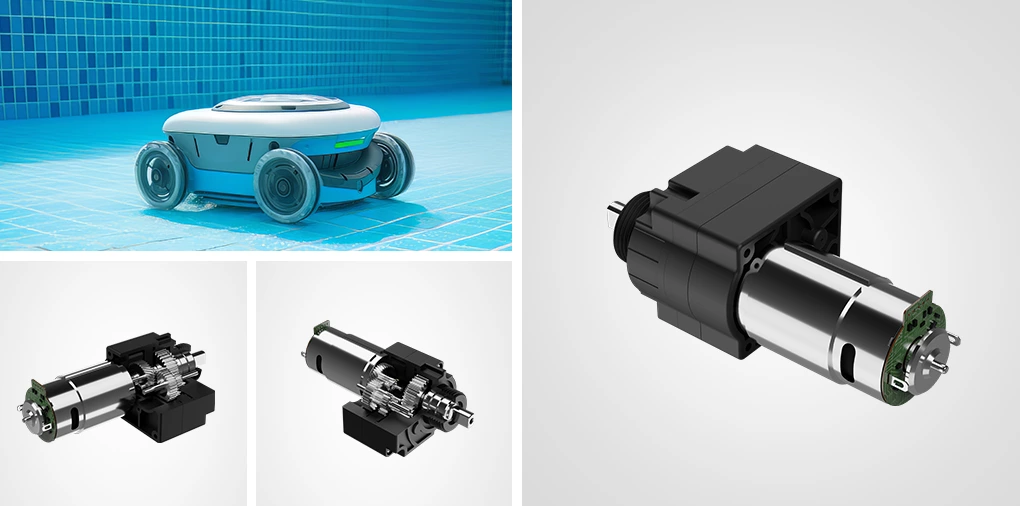

Robotic Pool Cleaner motor
