16 mm Spur Gearbox (low backlash)
Model: gm20149-01
Product Description: ZHAOWEI's low backlash difference positive transmission reduction gearbox adopts precision processing technology and special heat treatment methods to achieve stronger performance.
- Rated Voltage
- 12V
- No-load Speed
- 90±12%RPM
- Noise
- 32dB Max
- Rated Speed Range
- 50±12%RPM
- Operating Temperature
- -40℃-85℃
Product Description:
ZHAOWEI's low backlash difference positive transmission reduction gearbox adopts precision processing technology and special heat treatment methods to achieve stronger performance. It is mainly used in the fields of special equipment and automotives, and has the characteristics of low return delay and high transmission efficiency.
| 16 mm Spur Gearbox (low backlash) | |
|---|---|
| Model | gm20149-01 |
| Diameter（mm） | 16 |
| Length（mm） | 43.4 |
| Maximum transmission power | 0.5 |
| Maximum continuous torque | 0.1 |
| Ambient temperature | -40—80 |
| Reducer technical data | |
|---|---|
| Stages | 4 |
| Reduction Ratio | 141.00 |
| Maximum continuous transmission power（W） | 0.50 |
| Maximum instantaneous transmission power（W） | 0.80 |
| Maximum continuous torque(Nm) | 0.100 |
| Maximum instantaneous torque(Nm) | 0.13 |
| Maximum continuous input speed(rMPm) | 12000 |
| Maximum instantaneous input speed(rMPm) | 15000 |
| Maximum efficiency(%) | 65.00 |
| Average no-load return(°) | 0.00 |
| Maximum axial dynamic load（N） | 5.00 |
| Maximum radial load (6.5mm from flange）(N) | 25.00 |
| Gearbox length L1(mm) | 43.40 |
| Weight（G） | 41.00 |

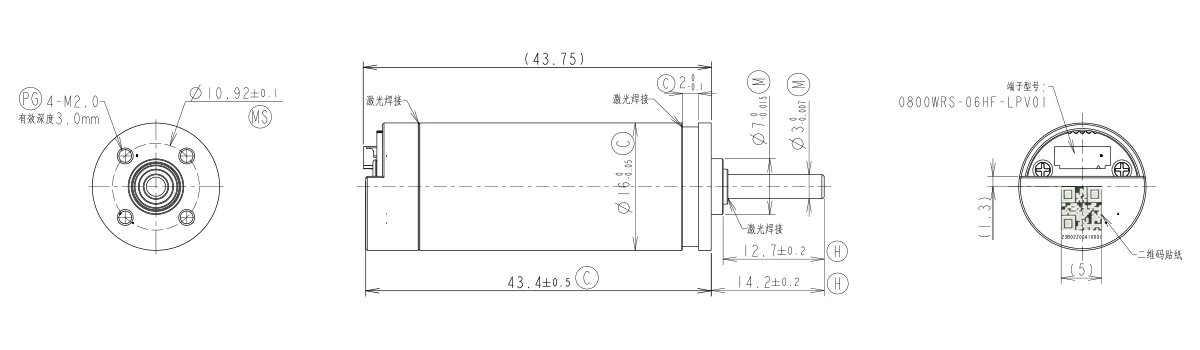

Technical Illustrations:
