Gear Motor for Monitor Rotation Parameters

Publish Time: 05/29 2020 Author: Site Editor Visit: 1002

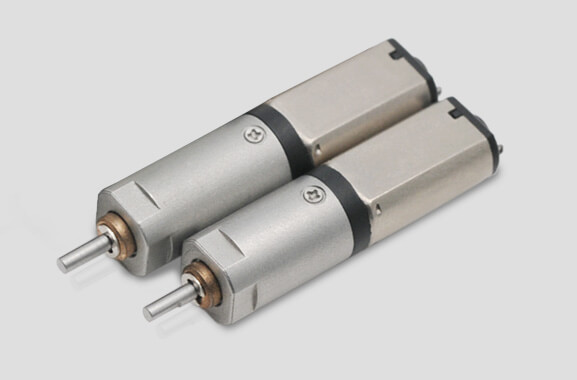

The monitor rotating gear motor is a micro-drive gear motor with low power, which enables deceleration and transmission, and improves the output torque. Its main transmission structure is assembled by the integrated manufacturing of a drive motor and a gearbox. The drive motor can use a brush DC motor, BLDC motor, stepper motor, or coreless motor as the drive source, while the gearbox can use a planetary gearbox or custom gearbox as the reducer. The technical parameters of monitor rotating gear motors are usually customized for development. Customization includes output power, voltage, reduction ratio, torque, transmission precision, gear material, motor type, gearbox structure, and transmission noise.

ZHAOWEI Machinery & Electronics Co., Ltd provides the R&D, design and manufacturing of micro gear motors, and motorized turntable display screen gearboxes, with available customization. The customized technical parameters provided by ZHAOWEI are as follow:

Diameter: 3.4mm-38 mm
Voltage: below 24V
Output power: below 50 W
Output speed: 5rpm-1500 rpm
Speed ratio: 2-2000
Output torque: 1.0 gf.cm -50kgf.cm

Parameters of Monitor Rotating Gear Motor：

Custom Development Service Case:

Project name: Motorized Lifting & Flipping Tablet Gearbox for Paperless Office Systems

Project background: Paperless office systems have becoming increasingly popular, most often used in companies for conferences. The intelligent lifting tablet occupies an important position in these systems. The motorized monitor lift extends on demand in conferences, and remains hidden when not in use, making it possible to save more space at the conference table.

Motorized Lift & Flip Tablet Gearbox for Paperless Office

Project Introduction: ZHAOWEI has developed a gearbox structure for the flipping function, based on the design of motorized gearboxes for the lifting function of paperless office systems. It adopts a 24V DC motor as its power supply, and a 24V permanent magnet DC motor as its drive power source.

Technical Scheme: The motorized lifting and flipping tablet gearbox, developed by ZHAOWEI, uses the customized mechanism of planetary gear motors, meshing lead screws, and nuts. The load is installed on the nut and completes the synchronous lifting along with the nut. The unidirectional damping device produces a damping force on the screw to offset the influence of gravity loaded on the screw. This helps to reduce the vibration and abnormal sound produced during the movement process of the lifting mechanism, avoids inertial impact, operates steadily and reliably, empowers slider stability, and brings high transmission accuracy, allowing a more stable and accurate lifting.
