Window Regulator Gear Motor Parameters

Publish Time: Author: Site Editor Visit: 1686

The window lift gear motor, also known as the window regulator gear motor, is the driving motor used in car window regulators. The automatic door and window regulator is an actuator, which completes the lifting control of the windows according to the driver or occupant's instructions. It mainly composes of a micro gear motor and transmission device. The main transmission structure is a gearbox assembled by the integrated manufacturing of a drive motor and gearbox (reducer). The motor can use a brushed DC motor, BLDC motor, stepper motor, coreless motor, or servo motor as the drive source. The gearbox can use a planetary gearbox, worm gearbox, or cylindrical gear as the reducer. Different types of window regulators use different window regulator motors with different parameters, which are usually developed with customized technical parameters, including reduction ratio, torque, power, voltage, specification, material, type of gearbox, and motor.

ZHAOWEI Machinery & Electronics Co., Ltd strives to research & develop, manufacture and customize car window lift motor gearbox. ZHAOWEI develops a wide selection of customized micro drive gear motor systems across a range of technical parameters:

The diameter specifications are available from 3.4mm to 38mm;
The voltage can be available below 24V;
The output power can reach up to 50W;
The output speed is between 5 RPM and 1500 RPM;
The ratio range is between 5 and 2000;
The output torque ranges from 1.0 gf.cm -50kgf.cm.

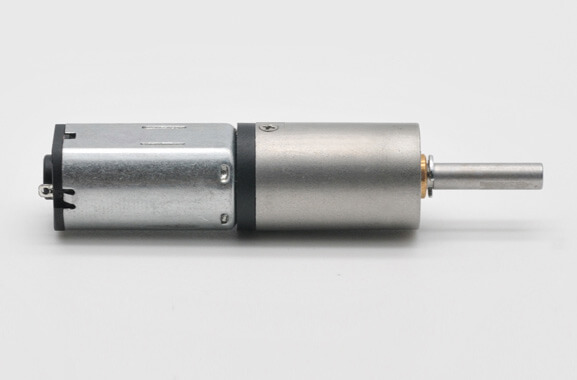

Car Window Regulator Motor Parameters:

Material Metal
Outer diameter 12mm
Operating temperature -20℃~+85℃
Direction of rotation cw&ccw
Gear backlash ≤3°
Voltage (Optional) 3V~24V
Bearing Porous bearing/Rolling bearing
Input speed ≤30000rpm
Axial endplay ≤0.3mm/≤0.2mm
Current 250mA max
Radial load on output shaft ≤10N/≤20N
Motors (Optional) Stepper/Brushed/Brushless motor

Gear Motor

Case of Customized Development Service:

Project Name: Automobile Power Door Window Gear Motor

Project Description: The automobile electric lift motor for windows generally means that its window glass can be automatically raised and lowered, and the window can be conveniently opened/closed even when driving, so the electric window is also called an automatic car window. Compared with the past, it is now more widely used in modern cars. The electric window system is composed of the car windows, window regulators and motor gearboxes, relays, switches, and ECUs to complete the lifting function. Each car window is controlled by a motor to raise or be lowered.
