Micro Camera Wiper Gear Motor Parameters

Publish Time: Author: Site Editor Visit: 1057

The micro camera wiper gear motor is a type of low-power transmission gear motor, whose main transmission structure is a piece of decelerating transmission equipment, assembled by the integrated manufacturing of a drive motor and gearbox (reducer). The drive motor can adopt a brushed DC motor, BLDC motor, stepper motor, coreless motor, or servo motor as the drive source, while the gearbox can adopt a planetary gearbox, worm gearbox, or general gearbox as the reducer. The technical parameters of the micro camera wiper motor, including the output power, voltage, reduction ratio, output torque, transmission accuracy, and transmission noise, are usually customized for development.

ZHAOWEI Machinery & Electronics Co., Ltd strives to research & develop, design and manufacture micro gear motors. Especially, its universal wiper motors for cameras with gearboxes occupy a place with good performance at a relatively affordable camera wiper motor cost together with others. The customized technical parameters of the micro transmission gear motor developed by ZHAOWEI are shown below:
Diameter: 3.4mm-38 mm
Voltage: below 24V
Output power: below 50 W
Output speed: 5rpm-1500 rpm
Speed ratio: 5-2000
Output torque: 1.0 gf.cm -50kgf.cm

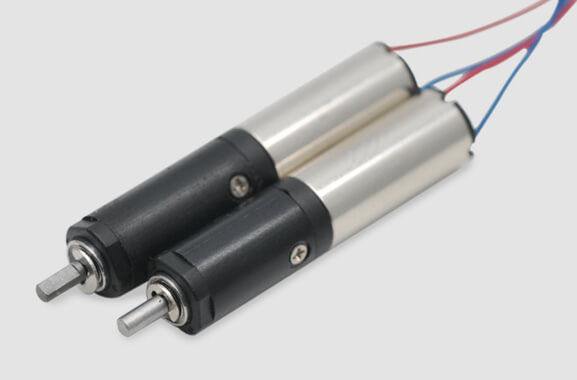

Micro Camera Wiper Motor Parameters:

Material Plastic
Outer diameter 6mm
Operating temperature -20℃~+85℃
Direction of rotation cw&ccw
Gear backlash ≤3°
Voltage (Optional) 3V~12V
Bearing Porous bearing/Rolling bearing
Input speed ≤30000rpm
Axial endplay ≤0.3mm/≤0.2mm
Current 100mA max
Radial load on output shaft ≤0.3N/≤4N
Motors (Optional) Stepper/Brushed DC/BLDC Motor


Customized Development Service Case:

Project Name: Gear Motor for Logistics Camera

Project Background: With the rapid development of e-commerce, logistics distribution has always been the bottleneck of its development. The combination of the incomplete logistics distribution system, high cost, low service quality & efficiency, and relatively narrow scope of distribution, pose challenging to the development of e-commerce.

Technical Scheme: The ZHAOWEI camera gearbox adopts an 8mm planetary gear motor to meet the requirements of small volume and high torque. In order to fulfill the differentiation of transmission torque in different camera angles and positions, ZHAOWEI has designed a transmission ratio structure that is multi-layered and transformable. With 2-stage, 3-stage, and 4-stage transmission changes, the reduction ratio, input speed and torque of the gearbox can be easily customized according to the design requirements of the camera motor. In other words, flipping a camera from multiple angles, flipping a camera side, unscrewing the top of a camera, extending and retracting, are all requirements that can be met.

Project Introduction: The ZHAOWEI camera gearbox takes advantage of the integrated gear motor design platform to achieve the automatic parameter design of involute planetary gear systems, bevel gears, face gears, etc. By optimizing the gear parameters, including quantity modification, tooth factor, pressure angle, and center distance, the impact meshing rate will decrease. The ratio of recess shock rate to impact meshing rate is within a certain range, which can provide a gear design that helps reduce or avoid the pitch circle impact. Noise generated from the gear motor is reduced when the product is in use, meeting the requirements of low operating noise.
